CP-UNC-TB21L3-MDS-V2
Home
Products
CP-UNC-TB21L3-MDS-V2

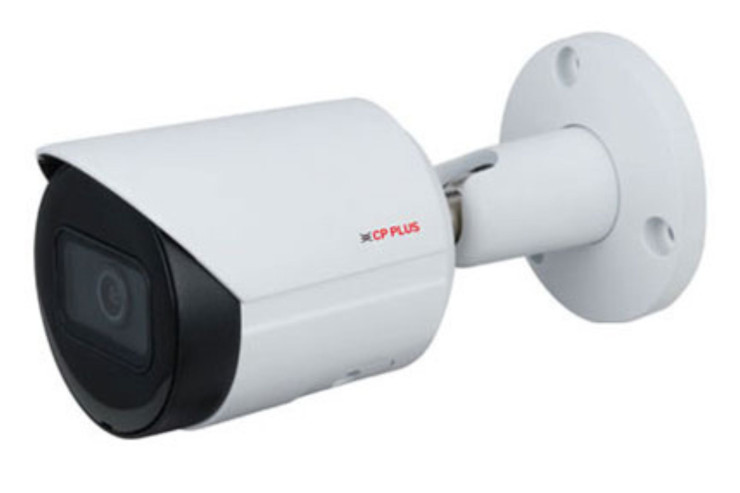

2MP Full HD WDR IR Bullet Camera - 30Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
2 MP
SKU:
24687
Share:
Description
Additional Information
Ratings
1/2.8” 2MP PS CMOS Image Sensor (0.9071 cm)
Max. 25/30fps@2MP (1920×1080)
Instastream, H.265 and H.264+ dual-stream encoding
WDR(120dB), Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
3.6mm fixed lens (2.8mm optional)
IR Range of 30 Mtrs, IP67, Micro SD Card, PoE
Support Starlight Function
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Image Sensor
1/2.8” 2MP Progressive scan CMOS (0.9071 cm)
Minimum Illumination
0.002Lux@F1.6
Effective Pixels
1920(H) x 1080(V)
Shutter Speed
Auto/Manual 1/3 s–1/100000 s
White Balance
Auto/Natural/Street Lamp/Outdoor/Manual
S/N Ratio
>56dB
RAM & ROM
128MB & 128MB
Lens
3.6mm fixed lens (2.8mm optional)
Gain Control (AGC)
Auto/Manual
Video Compression
Instastream/H.265/H.264+/H.264H/MJPEG (Sub Stream)
Angle of View
3.6mm- H: 87.0° V: 46.0° D: 104.0°, 2.8mm- H: 106.0° V: 56.0° D: 126.0°
Back Light Comp.
BLC / HLC / WDR(120dB)
Video Streaming
Main Stream: 1080P(1 ~ 25/30fps) Sub Stream: 704 × 576 (1 fps-25fps) 704 × 480 (1 fps-30fps)
Resolution
1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA (640×480)/CIF(352×288/352×240)
DORI Distance
2.8mm: 38.6m (Detect) 15.4m (Observe) 7.7m (Recognize) 3.9m (Identify) 3.6mm: 55.2m (Detect) 22.1m (Observe) 11.0m (Recognize) 5.5m (Identify)
Iris
Fixed
Privacy Mask
4 Areas
ICR
Auto (ICR)/Color/B/W
ROI
Yes (4 areas)
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour, ONVIF (Profile S/Profile G, Profile T); CGI; InstaOn; Milestone; Genetec
Motion Detection
Off / On (4 Zone, Rectangle)
Bit Rate
H.264: 32 Kbps–6144 Kbps ; H.265: 12 Kbps–6144 Kbps
Smart Detection
Tripwire, Intrusion
OTA (Online Device Upgrade)
Support
Cloud Health Monitoring System (HMS)
Support
Ethernet
RJ-45 (10/100Base-T)
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception
SDK and API
Yes
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
User/Host
20 Users
IR Range
Smart Phone
Micro SD
Storage Temperature
Operating Temperature
Humidity
Power Consumption
<4.9W
Power Source
DC12V, PoE (802.3af)
Casing
Metal
Weatherproof Standard
IP67
Dimension
166.2 mm × Φ70 mm
Weight
0.48 kg
