CP-EDS-Y08 - Supreme Security System

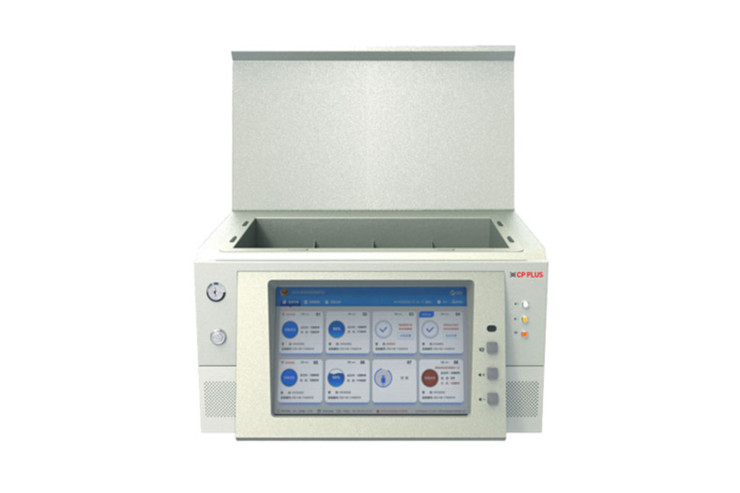

8 Ports Docking Station with screen

Category: Mobile Surveillance

Sub Category: Body Worn Camera

SKU: 10000

10 inches touch screen with resolution of 1920 x1200.
Support 8 channel camera for backup and recharge.
Support 1GB Ethernet port for data uploading.
Fast data export and battery recharge.
Support Android system.
Support upload data to the center FTP server automatically, no need local buffer.
Support alarm reminding for network error.
Support local search and playback

OS Version	Android 5.1
Screen	10 inch touch screen, resolution 1920 x 1200
Memory	8GB
Automatically Backup	When BWC connect to the terminal, it will backup all the video, audio, pictures and log file automatically.
Data Interface	8 channel docking slot or USB connection
Storage Empty	The terminal will empty all the data in the BWC when the backup finished.
Backup time	8 channel 16G data can be finished in 60 minutes, average speed is 4~6MB/S.
Status Display	During the backup progress, it can display the device id, name, group, storage space, backup status and so on.
Working time	7x24 hours continue working
Ethernet Standard	1 RJ45, 100/1000M
System Log	System will record all operation log of the terminal
Upload	All the video files will upload to the center server automatically or manually
Recharging	8 channels BWC can finish recharging in 4 hours and 45 minutes if the unit is OFF, if it’s ON, it need about 5 hours
USB	4 USB 2.0 ports
Operating Temperature	-10°C-55°C
Net Weight(g)	14kg
Dimension	295mm x 400mm x 213mm
Power Source	Normal voltage: AC100V—240V~50/60HZ
