CP-GPC-TA24L5-SE

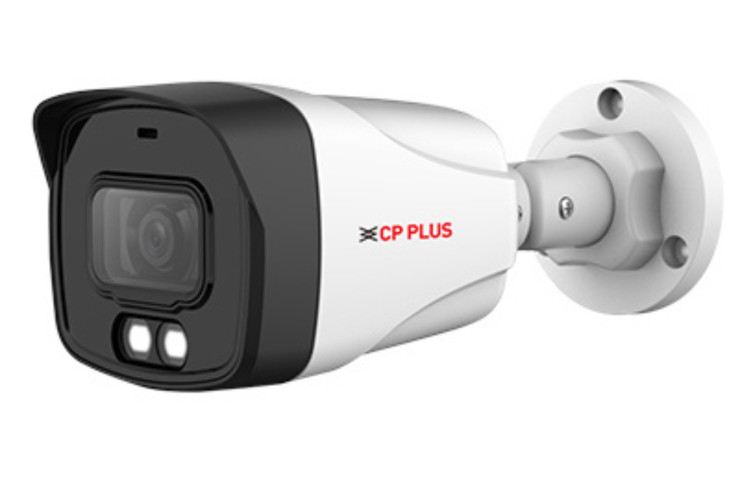

2.4MP Full-color Guard+ Bullet Camera - 50Mtr.

Category: Guard+

Sub Category: Analog

SKU: 41325

Image Sensor	1/2.8" 2.4MP CMOS Image Sensor (0.9071 centimetres)
Minimum Illumination	0.01Lux/F1.6, 0 Lux White light on
BodyType	Bullet
Shutter Speed	PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Max Aperture	F1.6
White Balance	Auto/Manual
Lens Type	Fixed
Lens	3.6mm (6mm Optional)
Gain Control (AGC)	Auto/Manual
DORI Distance	3.6mm: 55.2m (Detect) 22.1m (Observe) 11.0m (Recognize) 5.5mm (Identify) 6mm: 82.8m (Detect) 33.1m (Observe) 16.6m (Recognize) 8.3mm (Identify)
Angle of View	3.6mm: 103.6° × 86.9° × 46.3° (diagonal × horizontal × vertical) 6mm: 63° × 54° × 29° (diagonal × horizontal × vertical)
S/N Ratio	>65dB
Back Light Comp.	BLC/ DWDR
Video Streaming	CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960 × 576H; NTSC: 960 × 480H
Privacy Mask	Off/On (8 area, rectangle)
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Illumination Distance	Illumination Range of 50 Mtr.
Operating Temperature	-40°C ~ +60°C (-40°F to 140°F) / Less than <95% RH (non-condensation)
Power Source	12V DC ±30%
Power Consumption	Max 4.9W (12 V DC, White light on)
Weatherproof Standard	IP67
Dimension	198.4 mm × 80.2 mm × 76.2 mm
Casing	Metal front cover + plastic main body + metal bracket
Weight	0.3kg
