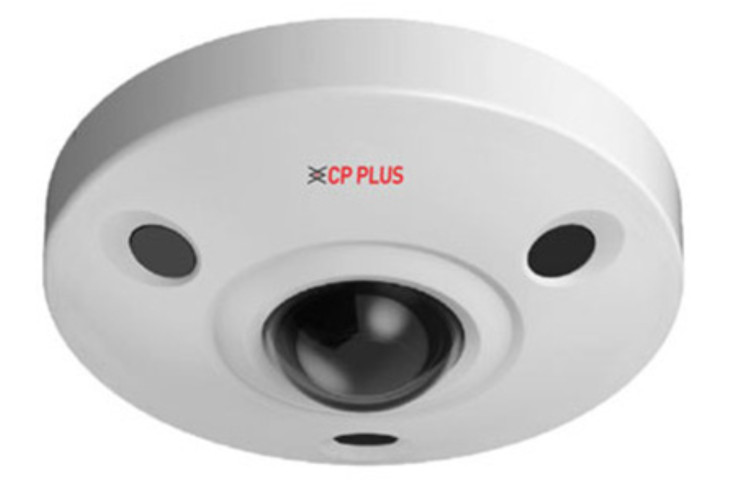

CP-UNC-EH4K121L1-VM

12MP Panoramic Network IR Fish eye camera - 10Mtr.

Category: Network Camera

Sub Category: 4K 12MP

SKU: 4243

Image Sensor	1/1.7” 12MP PS CMOS (4.318cm)
Minimum Illumination	0.001Lux/F2.8( Color,1/3s,30IRE), 0.01Lux/F2.8( Color,1/30s,30IRE), 0Lux/F2.8(IR on)
Effective Pixels	4000(H) x 3000(V)
BodyType	Fisheye
Shutter Speed	Auto/Manual, 1/3~1/100000s
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Lens	1.98mm
Gain Control (AGC)	Auto/Manual
Video Compression	H.265/H.264
Angle of View	H: 180˚, V:180˚
S/N Ratio	More than 50 dB
Back Light Compensation	BLC/ HLC/ DWDR
Video Streaming	Main Stream: 12MP(1~25fps)/ 8MP(1~25/30fps), Sub Stream: D1(1 ~ 25/30fps), Third Stream: 1.3MP(1 ~ 25/30fps)
Digital Zoom	16x
Resolution	12M(4000×3000)/ 8M(2880×2880)/ 6M(2880×2160)/ 3M(2048x1536)/ 1.3M(1280x960)/ D1(704×576/704×480)/ CIF(352×288/352×240
Motion Detection	Off / On (4 Zone, Rectangle)
Privacy Mask	Off / On (4 Area, Rectangle)
ICR	Auto(ICR)/Color/B/W
ROI	Off / On (4 Zone)
Audio Input	1 Ch.
Audio Output	1 Ch.
Audio	1 Built-in Mic
Alarm IN	2 channel In: 5mA 5VDC
Alarm Out	2 channel Out: 1A 30VDC / 0.5A 50VAC
Bit Rate	H.265: 3Kbps~ 9984Kbps, H.264: 8Kbps~ 16384Kbps
Protocol	HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP; ONVIF, PSIA, CGI
Smart Detection	Tripwire, Intrusion, Heat Map
Ethernet	RJ-45 (100/1000Base-T)
Smart Phone	iPhone, iPad, Android Phone
IR Range	10Mtr.
Micro SD	Mirco SD card 128GB
Operating Temperature	-30°C~+60°C, Less than 95%RH
Power Source	DC12V, PoE(802.3af)
Power Consumption	<12W
Weatherproof Standard	IP67, IK10
Dimension	Φ149.8mm×47.7mm
Weight	0.58kg
