CP-UNC-TD21ZL6C-VMDS
Home
Products
CP-UNC-TD21ZL6C-VMDS

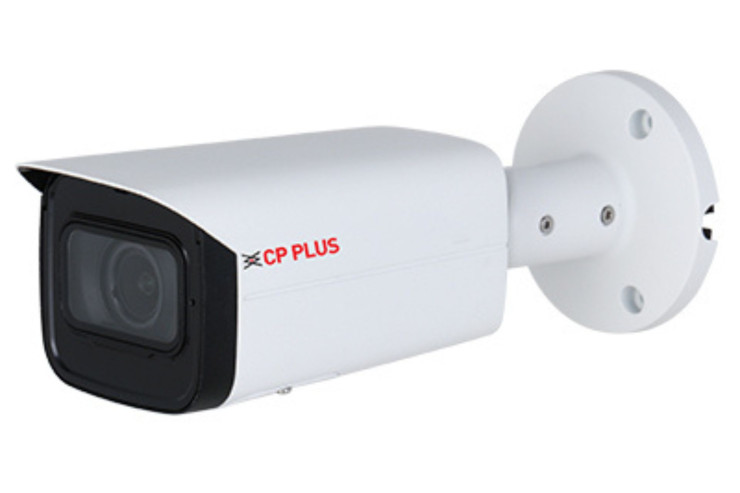

2MP IR Bullet Network Camera - 60Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
2 MP
SKU:
10000
Share:
Description
Additional Information
Ratings
1/2.8” 2MP PS CMOS Image Sensor (0.9071Cm)
Max. Output 2MP(1920×1080)@50/60fps
AI Instastream, Instastream, H.265, Smart H.264 encoding
WDR(120dB), Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, HLC, BLC
2.7mm~13.5mm Motorized Lens
IR Range of 60 Mtrs, Support Built in Mic, Micro SD Card, IP67, IK10(Optional), SMD 3.0
Support Starlight Technology
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Image Sensor
1/2.8” 2MP PS CMOS Image Sensor (0.9071cm)
Minimum Illumination
0.002 lux@F1.5 (Color, 30 IRE) 0.0002 lux@F1.5 (B/W, 30 IRE) 0 lux (IR on)
Effective Pixels
1920 (H) × 1080 (V)
BodyType
Bullet
Shutter Speed
Auto/Manual, 1/3~1/100000s
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Lens
2.7mm~13.5mm motorized Lens
S/N Ratio
>56dB
Gain Control (AGC)
Auto/Manual
Iris
Fixed
Video Compression
H.265, Smart H.264+, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
Max Aperture
F1.5
Encode Strategy
Instastream
DORI Distance
W: 44.1m(Detect) 17.6m(Observe) 8.8m(Recognize) 4.4m(Identify) T: 144.8m(Detect) 57.9m(Observe) 28.9m(Recognize) 14.8m(Identify)
Angle of View
Horizontal: 109°–30° Vertical: 56° –17° Diagonal: 137° –35°
Back Light Comp.
BLC / HLC / WDR(120dB)
Video Streaming
Main stream: 1920 × 1080 @ (1–50/60) fps Sub stream 1: 704 × 576 @ (1–50 fps)/704 × 480 @ (1–60 fps) Sub stream 2: 1920 × 1080 @ (1–50/60 fps) Sub stream 3: 1280 × 720 @ (1–50/60 fps)
Resolution
1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Motion Detection
Off/ On (4 areas, rectangular)
Privacy Mask
Supported (4 areas)
ICR
Auto (ICR)/Color/B/W
ROI
Supported (4 areas)
Audio Input
1 channel (RCA port)
Audio
Built-in Mic
Audio Output
1 channel (RCA port)
Audio Compression
G.711a; G.711Mu; PCM; G.726; G.723
Alarm IN
1 channel in: 5mA 3V–5V DC
Alarm Out
1 channel Out: 300mA 12VDC
Bit Rate
H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; ONVIF(profile S, profile G, profile T); CGI; Instaon, Milestone,Genetec
Smart Detection
Tripwire, Intrusion (support the classification and accurate detection of vehicle and human)
Ethernet
RJ-45 (10/100Base-T)
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing, audio detection; voltage detection; defocus detection; external alarm; face detection; SMD; security exception
SMD Plus
Less false alarm, longer detection distance
User Account
20 (Total Bandwidth: 64 M
SDK and API
Support
IR Range
IR Range of 60 Mtr., Smart IR
Cyber Security
Video encryption, Configuration encryption, Digest, WSSE, Account lockout, Security logs, IP/ MAC filtering, Generation and importing of X.509 certification, syslog, HTTPS, 802.1x, Trusted boot, Trusted execution, Trusted upgrade
Smart Phone
iPhone, iPad, Android Phone
Micro SD
NAS, FTP, SFTP; Mirco SD card (Max. 256GB)
Operating Temperature
-30 °C to +60 °C (–22 °F to 140 °F)
Storage Temperature
-40°C to +60°C (-40°F to +140°F)
Power Source
12 VDC/PoE (802.3af)
Power Consumption
Basic: 2.3 W (12 VDC); 2.9 W (PoE) Max. (WDR + IR intensity + Intelligence): 6.6 W (12 VDC); 7.7 W (PoE)
Humidity
Less than 95% RH
Weatherproof Standard
IP67, IK10(Optional)
Casing
Metal
Dimension
244.1mm × 79.0mm × 75.9mm (L × W × H)
Weight
0.820 g
