CP-UNC-VB51ZL4C-VMDS
Home
Products
CP-UNC-VB51ZL4C-VMDS

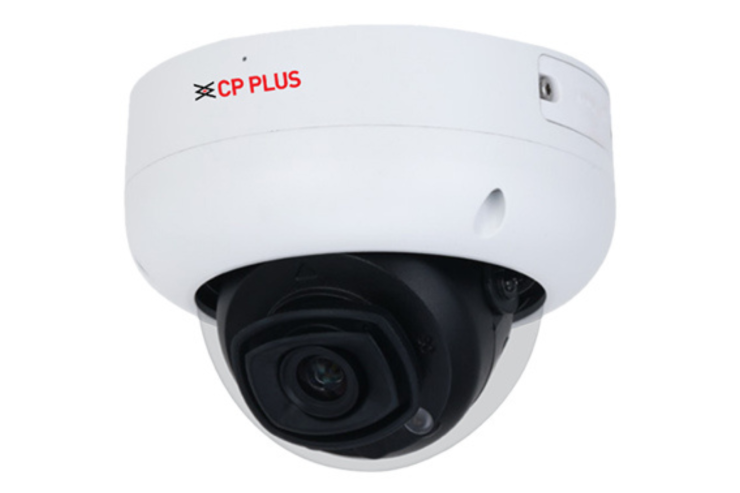

5MP WDR IR Vandal Dome Camera - 40Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
5 MP
SKU:
24687
Share:
Description
Additional Information
Ratings
1/2.7” 5MP PS CMOS Image Sensor (0.9407 centimeters)
max. 5 MP (2960 × 1668) @20 fps, and(2688 × 1520) @25/30 fps.
Support Starlight Function
Smart Instastream, H.265, H.264, H.264H, H.264B, MJPEG
WDR(120dB), Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
2.7~13.5mm Motorized lens
IR Range of 40 Mtr., IP67, IK10, Micro SD Card, PoE
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Image Sensor
1/2.7” 5MP PS CMOS Image Sensor (0.9407 centimeters)
Effective Pixels
2960 (H) × 1668 (V)
Minimum Illumination
0.007 lux@F1.5 (Color, 30 IRE) 0.0007 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on)
Shutter Speed
Auto/Manual 1/3 s–1/100000 s
RAM
256 MB
ROM
128 MB
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Lens
2.7mm~13.5mm
Lens Type
Motorized vari-focal
Gain Control (AGC)
Auto/Manual
Lens Mount
φ14
Close Focus Distance
0.8 Mtr.
DORI Distance
W:Detect: 64.0 Mtr., Observe: 25.6 Mtr., Recognize: 12.8 Mtr., Identify: 6.4 Mtr.
Max Aperture
F1.5
Angle of View
H: 113°–31°; V: 58°–18°; D: 138°–36°
Back Light Comp.
BLC / HLC / WDR(120dB)
Pan, Tilt, Rotation
Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355°
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Encode Strategy
Samrt Instastream
Frame Rate
Main stream: 2960 × 1668 @(1–20 fps )/2688 × 1520@ (1–25/30 fps), sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @(1–30 fps)
stream Capability
2 Streams
Resolution
2592×1944(2592×1944); 2688×1520(2688×1520); 3M(2048×1536); 2304×1296(2304×1296); 1080P(1920×1080); 1.3M (1280 × 960); 720P(1280×720); D1(704× 576/704×480); VGA (640×480); CIF(352×288/352×240)
Bit Rate
H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps
Bit Rate Control
CBR/VBR
Smart search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Privacy Mask
4 areas
ROI
Support (4 areas)
Audio Input
1 channel (RCA port)
Audio Output
1 channel (RCA port)
Audio Compression
G.711a; G.711Mu; PCM;
Audio
Built-in Mic
Alarm IN
1 channel in: 5mA 3V–5V DC
Alarm Out
1 channel out: 300mA 12V DC
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; BoujouONVIF (Profile S/Profile G/Profile T); CGI; Milestone
Ethernet
RJ-45 (10/100Base-T)
SDK and API
Support
Day/Night
Auto(ICR)/Color/B/W
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only - ZAS supports); SMD; security exception
User/Host
20 (Total bandwidth: 48 Mbps)
Cyber Security
Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
Smart Phone
iPhone, iPad, Android Phone
Mirror Function
Support
IR Distance
IR Range of 40 Mtr.
IR Number
2 (IR LED)
IR Control
Auto, Manual
Iris Control
Fixed
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Browser
IE; Chrome; Firefox
Storage
FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Weatherproof Standard
IP67 & IK10
Smart IR
Support
Power Source
12V DC/POE (802.3af)
Power Consumption
Basic: 2.4 W (12 VDC); 3 W (PoE) Max. (H.265 + max. resolution + max. stream+ WDR + IR intensity + IVS): 6.2 W (12 VDC); 7.4 W
Operating Temperature
–30 °C to +60 °C
Operating Humidity
≤95%
Storage Temperature
–40 °C to +60 °C
Storage Humidity
≤95%
Dimension
93.4 mm × Φ122 mm
Weight
0.47 Kg
