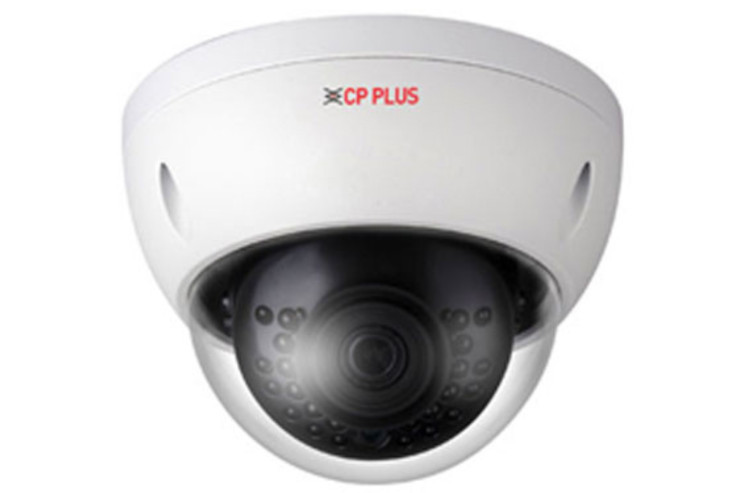

2MP Full HD WDR IR Vandal Dome Camera - 50Mtr.
| Image Sensor | 1/2.8” 2Megapixel PS CMOS Image Sensor (0.9071 cm) |
|---|---|
| Minimum Illumination | 0.002 Lux@F1.6 (Color, 30IRE) 0.0002 Lux@F1.6 (B/W, 30IRE) 0 Lux (IR on) |
| Effective Pixels | 1920 (H) ×1080 (V) |
| Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| S/N Ratio | >56dB |
| Lens | 3.6mm (2.8mm, 6mm optional) |
| Gain Control (AGC) | Auto/Manual |
| Video Compression | Instastream/H.265/H.264+/H.264/H.264H/H.264B/MJPEG |
| Iris | Fixed |
| Encode Strategy | Instastream |
| Max Aperture | F1.6 |
| Angle of View | 3.6mm: Horizontal:87°; vertical: 46° ; diagonal: 104° ; 2.8mm: Horizontal:106°; vertical: 57°; diagonal: 126° ; 6mm: Horizontal:54°; vertical: 29°; diagonal: 63° |
| Mount Type | M12 |
| Back Light Compensation | BLC / HLC / WDR(120dB) |
| Video Streaming | Main stream (1920 × 1080@1–25/30 fps), sub stream (704 × 576@1–25/30 fps), third stream (1280 × 720@1–25/30 fps) |
| Resolution | 1080P (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Privacy Mask | 4 areas |
| ICR | ICR auto switch |
| DORI Distance | 3.6mm- 55.2m (Detect) 22.1m (Observe) 11.0m (Recognize) 5.5m (Identify) 2.8mm- 38.6m (Detect) 15.4m (Observe) 7.7m (Recognize) 3.9m (Identify) 6mm- 82.8m (Detect) 33.1m (Observe) 16.6m (Recognize) 8.3m (Identify) |
| ROI | Yes (4 areas) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Audio Compression | G.711a; G.711Mu; G726 |
| Alarm IN | 1 channels in: 5mA 3V–5V DC |
| Alarm Output | 1 channel Out: 300mA 12VDC |
| Bit Rate | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; SSL/TLS; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; ONVIF (Profile S/Profile G/Profile T); CGI; InstaOn; Milestone; Genetec |
| Smart Detection | Tripwire; intrusion (Recognition of human and vehicle) |
| Ethernet | RJ-45 (10/100Base-T) |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; input abnormal; intensity change; tripwire; intrusion; SMD |
| User Account | 20 Users (Total bandwidth: 64 M) |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Smart Phone | iPhone, iPad, Android Phone |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| IR | IR Range of 50 Mtr. |
| SDK and API | Yes |
| Micro SD | FTP, SFTP, Micro SD card 512GB, NAS |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F)/ less than≤95% |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Power Consumption | <6.9W |
| Power Source | 12V DC/PoE (802.3af) |
| Weatherproof Standard | IP67 & IK10 |
| Casing | Metal |
| Dimension | 81 mm × Φ109.9 mm |
| Weight | 378 g |
