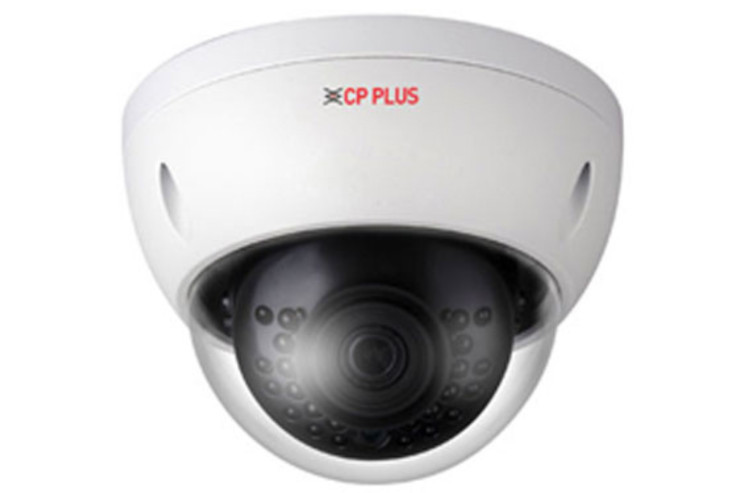

2MP Full HD AI WDR IR Vandal Dome Camera - 40Mtr.
| Image Sensor | 1/2.8" 2Megapixel PS CMOS Image Sensor (0.9071 centimeters) |
|---|---|
| Minimum Illumination | 0.002 lux@F1.5 (Color, 30 IRE) 0.0002 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| BodyType | Vandal Dome |
| Shutter Speed | Auto/Manual, 1/3~1/100000s |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Max Aperture | F1.5 |
| Lens | 2.7mm~13.5mm Motorized |
| Gain Control (AGC) | Auto/Manual |
| Video Compression | Instastream, H.265, H.264, H.264B, H.264H, MJPEG (sub stream) |
| Back Light Comp. | BLC / HLC / WDR(120dB) |
| Video Streaming | Main Stream: 1080P (1 fps–25/30 fps) Sub Stream: D1 (1 fps–25/30 fps) Third Stream: 1080P (1 fps–6 fps) |
| Angle of View | H: 109°–30°, V: 57°–17° |
| Resolution | 1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Bit Rate | H.264: 32 Kbps–8192 Kbps, H.265: 19 Kbps–7424 Kbps |
| DORI Distance | W- 44.0m (Detect) 18m (Observe) 9.0m (Recognize) 4.0m (Identify) T- 146.0m (Detect) 58m (Observe) 29m (Recognize) 15m (Identify) |
| Privacy Mask | Off / On (4 Area, Rectangle) |
| ICR | Auto(ICR)/Color/B/W |
| ROI | Off / On (4 Zone) |
| Audio Input | 1 Ch. |
| Audio Compression | G.711a, G.711Mu, G.726, AAC, G.723 |
| Audio Output | 1 Ch. |
| Alarm IN | 1 channel In: 5mA 5VDC |
| Alarm Out | 1 channel Out: 300mA 12VDC |
| Protocol | IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS; QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP;ONVIF (Profile S/Profile G), CGI, Milestone, Genetec, InstOn |
| Smart Detection | Object Abandoned/Missing, Heat Map, Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering |
| Ethernet | RJ-45 (10/100Base-T) |
| User Account | 20 users |
| Smart Phone | iPhone, iPad, Android Phone |
| People Counting | Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection |
| IR Range | IR Range of 40 Mtr. |
| Face Detection | Support 6 kinds of face attributes extraction: Age, Gender, Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Moustache & Beard |
| Micro SD | NAS; FTP; SFTP; Micro SD card 256GB |
| Operating Temperature | -30° C to +60° C (-22° F to +140° F)/Less than 95% RH |
| Power Source | DC 12V (±30%), AC 24V (±30%), PoE (802.3af), ePoE |
| Power Consumption | <11.8W |
| Weatherproof Standard | IP67 & IK10 |
| Dimension | Φ159.1mm×117.9mm (6.26”×4.64”) |
| Casing | Metal |
| Weight | 0.95kg |
