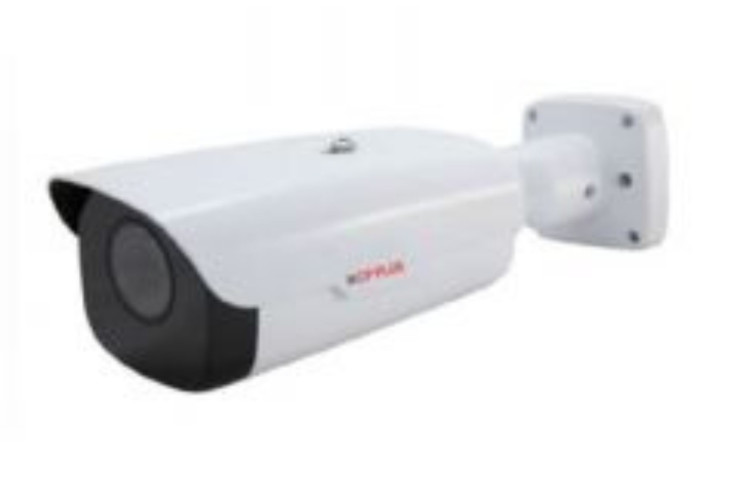

CP-VNC-T4KZR10-VMD

4K WDR Array Bullet Camera - 100Mtr.

Category: Network Camera

Sub Category: 4K 8MP

SKU: 2424

1/2.5" 8MP PS CMOS Image Sensor (1.016 centimeters)
Max 30fps@4K
Ultra H.265, H.265, H.264, MJPEG Triple-stream encoding
WDR (120dB), Day/Night (ICR), 3D/2D-DNR, Digital Defog, Corridor Mode, ROI, AWB, AGC, BLC, HLC
2.8~12mm Motorzied Lens
IR Range of 100 Mtrs, Micro SD Card, IP67, PoE
Supports Instastream technology, save diskspace and bandwidth upto 70%
Mobile Software: Android, iOS
CMS Software: IVMS
*Only for UAE

Image Sensor	1/2.5
Minimum Illumination	Colour: 0.02 Lux (F1.6, AGC ON) 0 Lux with IR
BodyType	Bullet
Shutter Speed	Auto/Manual, 1~1/100000s
White Balance	Auto/Manual
Lens	2.8~12mm Motorized Lens
AGC Control	Auto/Manual
Video Compression	Ultra H.265, H.265, H.264, MJPEG
S/N Ratio	>55dB
Back Light Comp.	BLC/ HLC/ WDR(120dB)
Frame Rate	Main Stream: 8MP (3840x2160), Max 30fps; 2MP (1920x1080), Max 30fps; Sub Stream: 2MP (1920x1080), Max 30fps; Third Stream: D1 (720x576), Max 30fps
Video Streaming	Triple
Video Output	1 BNC, impedance 75 O; amplitude 1 V [p-p]
Resolution	3840×2160
ICR	IR-cut filter with auto switch (ICR)
ROI	supports
Interface	1 RS485
Audio Input	impedance 35 kO; amplitude 2 V [p-p]
Audio Output	impedance 600 O; amplitude 2 V [p-p]
Alarm IN	2 IN
Alarm Out	1 Out
Protocol	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, ONVIF (Profile S, Profile G, Profile T), API
IR Range	Array Range of 100 Mtr.
Micro SD	Micro SD, Up to 256GB
Operating Temperature	-40°C ~ 60°C (-40°F ~ 140°F)
Humidity	<95% RH(non-condensing)
Power Source	DC12V±25%, AC24V±25% or PoE (IEEE802.3 at)
Power Consumption	Max. 13.7W
Weatherproof Standard	IP67
Dimension	305.5mm x 104.1mm x 97.3mm (12.0” × 4.1” × 3.8”)
Weight	1.65 kg
