CP-VNC-T4KZR5-VMD-V2
Home
Products
CP-VNC-T4KZR5-VMD-V2

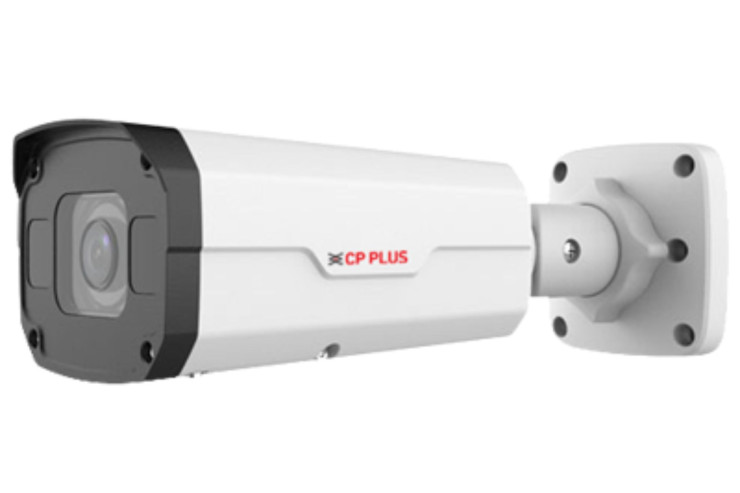

8MP WDR Array Network Bullet Camera - 50Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
4K 8MP
SKU:
32664
Share:
Description
Additional Information
Ratings
1/2” 8MP PS CMOS Image Sensor (1.27 centimeters)
Max. 20fps@8MP (3840 x 2160) , Max.30fps@5MP(2592 x 1944)
Ultra 265,H.265, H.264,MJPEG Triple-stream encoding
WDR(120dB), Day/Night(ICR), Corridor mode, Digital Defog, 2D/3D-DNR, ROI, AWB, AGC, BLC, HLC
2.8~12mm Motorized Lens
IR Range of 50 Mtrs, Smart IR, Micro SD, IP67, PoE
Mobile Software: Android, iOS
CMS Software: IVMS
*Only for UAE
Image Sensor
1/2” 8MP Progressive scan CMOS (1.27 centimeters)
Minimum Illumination
Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR on
BodyType
Bullet
Shutter Speed
Auto/Manual, 1 ~ 1/100000s
White Balance
Auto/Manual
Lens
2.8~12mm Motorized Lens
Gain Control (AGC)
Auto/Manual
Video Compression
Ultra 265,H.265, H.264,MJPEG
Angle of View
114.8° ~47.3°(H) 75.3° ~ 20.4°(V) 141.2° ~ 55.8°(O)
S/N Ratio
>52dB
Frame Rate
Main Stream: 8MP (3840x2160), Max 20fps; 5MP (2592x1944), Max 30fps; 5MP (2944x1656), Max 30fps; 4MP (2560x1440), Max 30fps; 2MP (1920x1080), Max 30fps; Sub Stream: 2MP (1920x1080), Max 30fps; Third Stream: D1 (720x576), Max 30fps
Video Streaming
Triple
Motion Detection
Up to 4 areas
Privacy Mask
Up to 8 areas
ICR
IR-cut filter with auto switch (ICR)
ROI
Up to 8areas
OSD
Up to 8 OSDs
Audio Input
impedance 35 kΩ; amplitude 2 V [p-p]
Audio Output
impedance 35 kΩ; amplitude 2 V [p-p]
Audio
Two-way audio Supported
Alarm IN
1 IN
Alarm Out
1 Out
Protocol
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, ONVIF (Profile S, Profile G, Profile T), API
Smart Detection
Intrusion, cross line, motion detection, Face detection, Audio detection, Defocus, Scene Change, Object Left, Object Moving , People counting
Ethernet
1 RJ45 10M/100M Base-TX Ethernet
IR Range
IR Range of 50 Mtr., Smart IR
Micro SD
Micro SD, up to 256GB
Operating Temperature
-35°C ~ +60°C (-31°F ~ 140°F)
Humidity
≤95% RH (non-condensing)
Power Source
12 V DC±25%, PoE (IEEE802.3 af)
Power Consumption
Max 10W
Weatherproof Standard
IP67
Dimension
253.4 × 86.4 × 78.7mm (57.6” × 3.4” × 2.8”)
Weight
1.0kg
