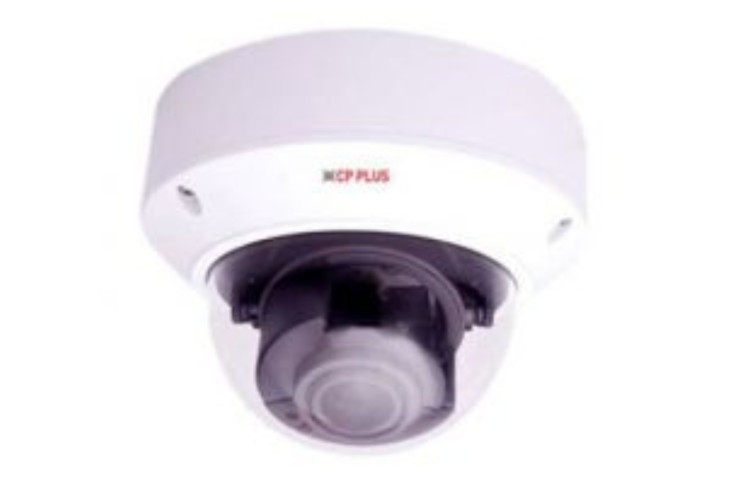

CP-VNC-V41FR3-VMD

4 MP WDR Array Vandal Dome Camera - 30Mtr.

Category: Network Camera

Sub Category: 4 MP

SKU: 43286

1/3” 4MP PS CMOS Image Sensor (0.84667cm)
Max: 20 fps@4MP(2592×1520)
Ultra H.265, H.265, H.264, MJPEG Triple-stream encoding
WDR(120dB), Day/Night (ICR), 2D/3D-DNR, Digital Defog, Corridor Mode, ROI, AWB, AGC, BLC
2.8~12 mm Varifocal Lens
IR Range of 30 Mtrs, Smart IR, Micro SD Card, IP67, IK10, PoE
Supports Instastream technology, save diskspace and bandwidth upto 70%
Mobile Software: Android, iOS
CMS Software: IVMS
*Only for UAE

Image Sensor	1/3” 4MP PS CMOS Image Sensor (0.84667cm)
Minimum Illumination	Colour: 0.005Lux (F1.4, AGC ON) 0Lux with IR on
BodyType	Vandal Dome
Shutter Speed	Auto/Manual, 1~1/100000 s
White Balance	Auto/Manual
Lens	2.8~12 mm Varifocal Lens
Gain Control (AGC)	Auto/Manual
Video Compression	Ultra H.265, H.265, H.264, MJPEG
S/N Ratio	>55dB
Frame Rate	Main Stream: 4MP (2592x1520), Max 20fps; 4MP (2560x1440), Max 25fps; 3MP (2048x1520), Max 30fps; Sub Stream: 2MP (1920x1080), Max 30fps; Third Stream: D1 (720x576), Max 30fps
Video Streaming	Triple
Video Output	1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
Resolution	2592 × 1520
Privacy Mask	Up to 8 areas
ICR	IR-cut filter with auto switch (ICR)
ROI	Up to 8 areas
OSD	Up to 8 OSDs
Audio Input	impedance 35 kΩ; amplitude 2 V [p-p]
Audio Output	impedance 600 Ω; amplitude 2 V [p-p]
Audio	Two-way audio Supported
Alarm IN	1 Ch.
Alarm Out	1 Ch.
WDR	Optical WDR (up to 120dB)
Protocol	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, ONVIF (Profile S, Profile G, Profile T), API
Ethernet	1 RJ45 10M/100M Base-TX Ethernet
IR Range	Array Range of 30 Mtr., Smart IR
Micro SD	Micro SD, up to 256GB
Operating Temperature	-40°C ~ 60°C (-40°F ~ 140°F)
Humidity	≤ 95% RH(non-condensing)
Power Source	DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption	Max.7.2 W
Weatherproof Standard	IP67 & IK10
Dimension	Φ148 x 111.3 mm (Ø5.8” x 4.4”)
Weight	0.92kg
