CP-EST-6TGA-305V1 - Supreme Security System

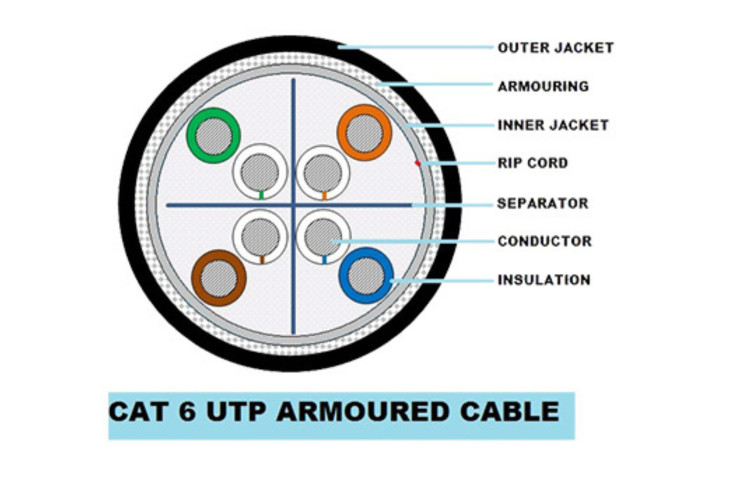

Cat6 Armoured Cable

Category: Accessories

Sub Category: Cables

SKU: 200000

Generally confirming to EIA/TIA 568-C.2 and IEC/ISO 11801
Excellent Margin with suppression of Cross Talk (NEXT)
For Outdoor Installation
4 Pair Separator Design
24 AWG cable
For India Market Only

Conductor	Solid Bare Electrolytic Grade Copper
Insulation	Polyethylene (HDPE)
Nominal Conductor Diameter	24 AWG (0.505 ± 0.015mm)
Cross Filler	HDPE
Pairing	Twisted into Two core
Outer Sheath	LDPE
Operating Temperature	-15 to +60°C
Approximate OD	9.00 ± 0.30mm
Impedance	100±15% Ω
Resistance Unbalance	5% Max
Colour of Sheath	Black
Sequential Marking	Every Meter
Packing	305 Mtrs
