CP-GPC-DA24PL2-SE

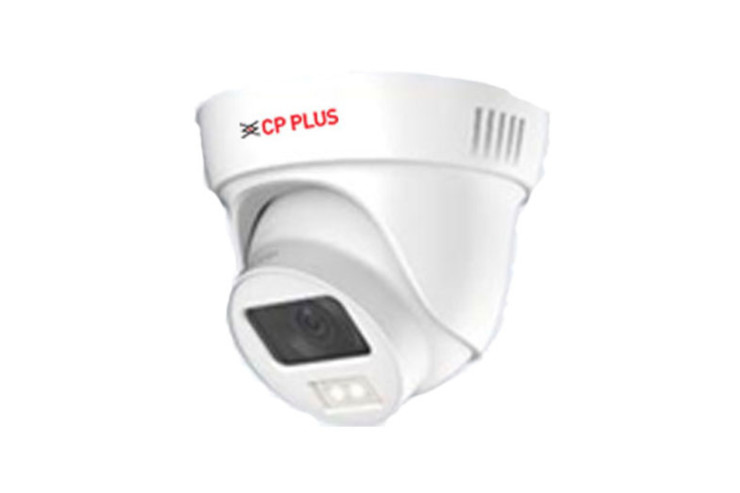

2.4MP Full-color Guard+ Dome Camera - 20Mtr.

Category: Guard+

Sub Category: Analog

SKU: 35469

Image Sensor	1/2.8" 2.4MP CMOS (0.9407 centimetres)
Minimum Illumination	0.01Lux/F1.6, 0Lux white light on
BodyType	Dome
Shutter Speed	PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Max Aperture	F1.6
White Balance	Auto/Manual
Lens Type	Fixed-focal
Lens	3.6mm (2.8mm Optional)
Gain Control (AGC)	Auto/Manual
DORI Distance	2.8mm: 38.6m (Detect) 15.4m (Observe) 7.7m (Recognize) 3.9mm (Identify) 3.6mm: 55.2m (Detect) 22.1m (Observe) 11.0m (Recognize) 5.5mm (Identify)
Angle of View	2.8mm: 126.2° × 106° × 56.5° (diagonal × horizontal × vertical) 3.6mm: 103.6° × 86.9° × 46.3° (diagonal × horizontal × vertical)
S/N Ratio	>65dB
Back Light Comp.	BLC/ DWDR
Video Streaming	CVI: PAL: 1080P@25fps; 720P@25fps; NTSC: 1080P@30fps; 720P@30fps; AHD: PAL: 1080P@25fps; NTSC: 1080P@30fps TVI: PAL: 1080P@25fps; NTSC: 1080P@30fps; CVBS: PAL: 960H; NTSC: 960H
Privacy Mask	Off/On (8 area, rectangle)
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Illumination Distance	Illumination Distance of 20 Mtr.
Operating Temperature	-40°C ~ +60°C (-40°F to 140°F) / Less than <95% RH (non-condensation)
Power Source	12V DC ±30%
Power Consumption	Max 3.0W (12V DC, White Light on)
Weatherproof Standard	IP67
Dimension	φ97.1 mm × 91.4 mm
Casing	Inner core: metal + plastic ; Cover: plastic ; Pedestal: plastic
Weight	0.21kg
