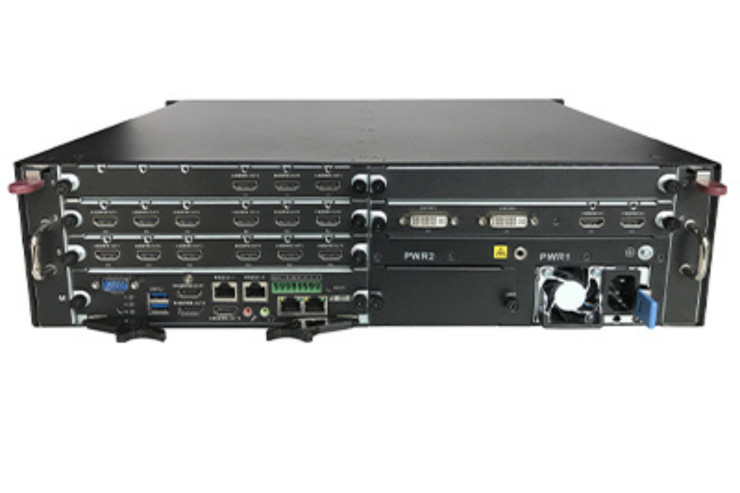

CP-UD-0212H-4K

Ultra-HD Network Video Decoder

Category: Network Video Recorder (NVR)

Sub Category: Video Decoder

SKU: 12435

Processor	Intel Embedded processor
Operating System	Embedded LINUX
Slot	1 Main board, 2 Decoding board(6CH), 1 Decoding board(3CH), 1 Collection board, 2 Blank panel
User Interface	GUI
Video Input	2 HDMI, 2 DVI-I
Video Output	12ch HDMI
Video Standard	H.265/H.264/MPEG2/MJPEG
Display Resolution	3840×2160/2560×1600/1920×1080/1280×1024/1280×720/1024×768
Collection Resolution	3840×2160/1920×1080/1600×1200/1680×1050/1440×900/1400×1050/1366×768/1280×1024 /1280×960/1280×800/1280×720/1152×864/1024×768/800×600, etc
Decoding Capacity Separately	Port1,2,3 / Port4,5,6 / Port7,8,9/ Port10,11,12 3CH@12MP/4CH@4K/8CH@5MP/10CH@3MP/16CH@1080P/ 36CH@720P/48CH@D1
Decoding Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P/960H/D1/HD1/2CIF/CIF/QCIF
Total Video Decoding	12CH@12MP/16CH@4K/32CH@5MP/40CH@3MP/64CH@1080P/144CH@720P/192CH@D1
Audio Format	PCM/G711/AAC
Audio Output	12ch HDMI
Bi-directional Talk	1 Pair 3.5mm jack (2.0V Line in/50mV Mic in/10KΩ, 2.0V/16Ω out)
Alarm Input/ Output	2CH/1CH(30V DC 1A, 125V AC 0.5A)
Interface Ports	3 RS232(1 DB9, 2 RJ45) , 1 RS485, 3 USB Ports (2 USB3.0, 1 USB2.0)
Ethernet	2 RJ45 network port (10M/100M/1000M)
Power Supply	AC100-127V, 200-240V, 47Hz-63Hz
Power Consumption	≤180W
Working Temp	-10°C ~+55°C / 10~95%RH / 86~106kpa
Dimensions	440×436.6×110mm
Weight	11.25kg
