CP-UNC-DA41PL3-D

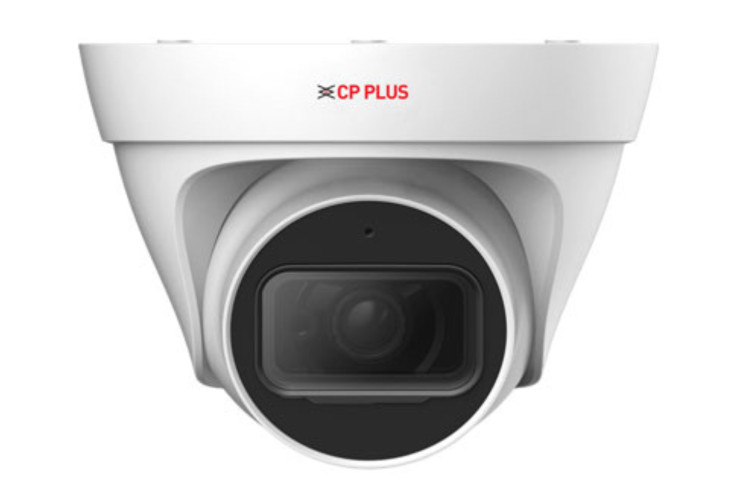

4MP WDR IR Network Dome Camera - 30Mtr.

Category: Network Camera

Sub Category: 4 MP

SKU: 10000

Image Sensor	1/3” 4MP Progressive scan CMOS (0.84667cm)
Minimum Illumination	[email protected]
Effective Pixels	2688(H) x 1520(V)
Lens	3.6mm (2.8mm Optional)
Frame Rate	Main Stream: 2688 × 1520 (1 fps–20 fps) 2560 × 1440 (1 fps–25/30 fps) Sub Stream: 704 × 576 (1 fps–20/25 fps) 704 × 480 (1 fps–20/30 fps)
Gain Control (AGC)	Auto/Manual
ICR	Auto (ICR)/Color/B/W
Privacy Mask	4 Area
Shutter Speed	Auto/Manual, 1/3~1/100000s
Angle of View	3.6mm: Horizontal: 81° Vertical: 44° Diagonal: 95° 2.8mm: Horizontal:93° Vertical: 53° Diagonal: 111°
Protocol	HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP, ONVIF (Profile S/Profile G); CGI; Milestone; Genetec; InstaOn
ROI	Yes (4 areas)
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Motion Detection	Off / On (4 area, Rectangle)
Back Light Compensation	BLC / HLC / WDR(120dB)
Video Compression	Instastream/H.265/H.264+/H.264/ H.264B/ MJPEG
Bit Rate	CBR/VBR
IR	IR Range of 30 Mtr.
Operating Temperature	-40°C~+55°C , Less than 95%RH
Smart Phone	iPhone, iPad, Android Phone
Power Source	DC12V,PoE (802.3af)
Power Consumption	<5.1W
Ethernet	RJ-45 (10/100Base-T)
Casing	Metal + Plastic
Dimension	85.5 mm × Φ109 mm
Weatherproof Standard	IP67
Weight	0.25kg
