CP-UNC-PD21-VD-V2
Home
Products
CP-UNC-PD21-VD-V2

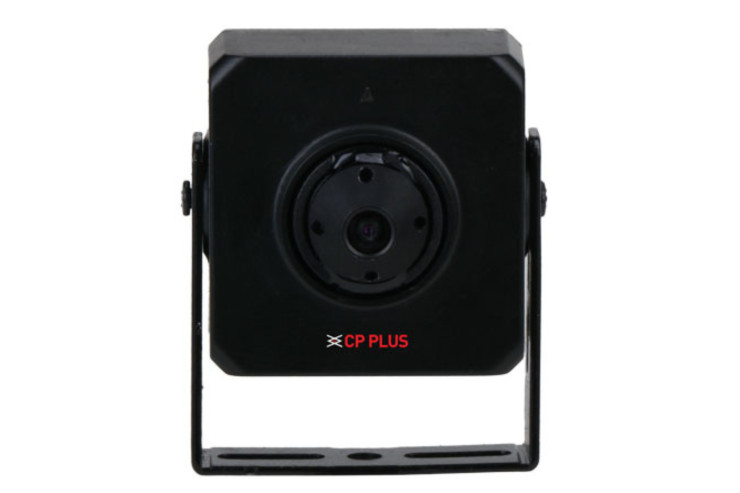

2MP Full HD WDR Network Pinhole Camera
Add To Cart
Category:
Network Camera
Sub Category:
2 MP
SKU:
24687
Share:
Description
Additional Information
Ratings
1/2.8” 2MP PS CMOS Image Sensor (7.112 centimetres)
Max. 25/30fps@1080P (1920×1080)
Instastream and H.264+ dual-stream encoding
WDR(120dB), 3D-DNR, ROI, AWB, AGC, BLC, HLC
2.8mm Fixed Lens
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Image Sensor
1/2.8” 2MP progressive CMOS (7.112 centimetres)
Minimum Illumination
0.005 Lux@F2.0
Effective Pixels
1920(H) x 1080(V)
Shutter Speed
Auto/Manual, 1/3~1/100000s
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
S/N Ratio
>56 dB
Lens
2.8mm
Lens Type
Fixed-focal
Gain Control (AGC)
Auto/Manual
Video Compression
Instastream/H.264+; Main stream: H.265; H.264H; H.264B; H.264 Sub stream: H.265; H.264H; H.264B; H.264; MJPEG
Iris
Fixed
Close Focus Distance
0.6m
Angle of View
Horizontal: 108° × Vertical: 59° × Diagonal: 118°
Max Aperture
F2.0
Back Light Compensation
BLC / HLC / WDR(120dB)
Video Streaming
Main stream: 1920 × 1080@1-25/30fps Sub stream: 704 × 576@25fps; 704 × 480@30fps
DORI Distance
2.8mm: 42.1m (Detect) 16.8m (Observe) 8.4m (Recognize) 4.2m (Identify)
Privacy Mask
4 Area
ICR
n/a
Resolution
Main stream: 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); Sub stream:D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
ROI
Yes (4 areas)
Motion Detection
Off / On (4 area, Rectangle)
Audio Input
1 Channel (RCA port)
Audio Output
1 Channel (RCA port)
Audio Compression
G.711A; G.711Mu; G.726; AAC
Bit Rate
H.265: 3 kbps–6144 kbps ; H.264: 3 kbps–6144kbps
Smart Detection
Tripwire; intrusion
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTS; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; Bonjour; ONVIF (Profile S); CGI; Milestone; Genetec
Event Trigger
Motion detection, video tampering, scene changing, audio detection, network disconnection, IP conflict, illegal access, voltage detection
Ethernet
RJ-45 (10/100Base-T)
Smart Phone
iPhone, iPad, Android Phone
Micro SD
FTP; SFTP; NAS
Operating Temperature
-40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Power Source
12V DC
Power Consumption
1.4W
Casing
Metal
Dimension
34.6 mm × 44 mm × 30 mm
Weight
82g
