CP-UNC-TA21L2-GP-V3
Home
Products
CP-UNC-TA21L2-GP-V3

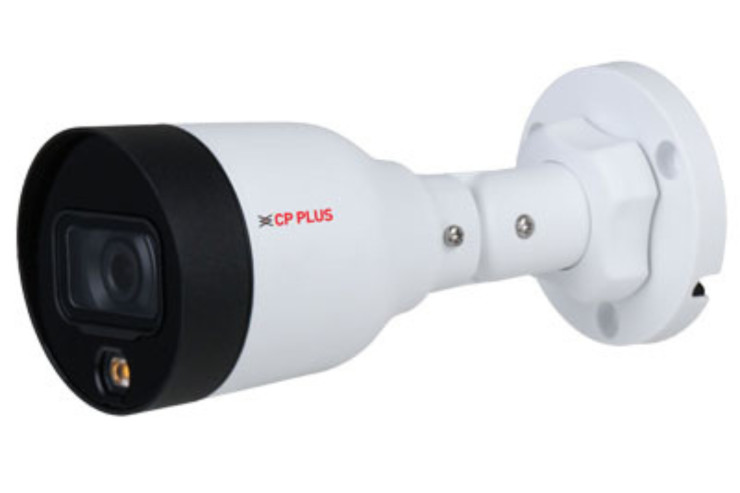

2MP Full-color Guard+ Network IR Bullet Camera
Add To Cart
Category:
Guard+
Sub Category:
Network
SKU:
32115
Share:
Description
Additional Information
Ratings
1/2.8” 2Megapixel PS CMOS Image Sensor (0.9071 centimeters)
Max. 2MP(1920 x 1080)@25/30fps
Smart H.265+ and Smart H.264+ dual-stream encoding
DWDR, Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
3.6mm fixed lens (2.8mm optional)
Support IP67, PoE
Built-in efficient LED illuminator, and the max. illumination distance is 20Mtr.
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Image Sensor
1/2.8" 2Megapixel progressive CMOS (0.9071 centimeters)
Minimum Illumination
0.005Lux@F1.6
Effective Pixels
1920 (H) x 1080 (V)
Lens
3.6mm (2.8mm Optional)
Frame Rate
Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps)
Gain Control (AGC)
Auto/Manual
Lens Type
Fixed-focal
ICR
Color/B/W
Max Aperture
2.8mm: F1.6 ; 3.6mm: F1.6
Privacy Mask
4 Area
Close Focus Distance
2.8mm: 0.8m ; 3.6mm: 1.1m
S/N Ratio
>56dB
Iris
Fixed
Shutter Speed
Auto/Manual, 1/3~1/100000s
DORI Distance
3.6mm: 54.8 m (Detect) 21.9 m (Observe) 11.0 m (Recognize) 5.5 m (Identify) 2.8mm: 43.9m (Detect) 17.5m (Observe) 8.8m (Recognize) 4.4m (Identify)
Angle of View
3.6mm: Horizontal: 88°; Vertical: 46°; Diagonal: 104° 2.8mm: Horizontal: 106°; Vertical: 56°; Diagonal: 127°
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast, ONVIF (Profile S/Profile T); CGI; InstaOn; Genetec
ROI
Yes (4 areas)
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Motion Detection
Off / On (4 area, Rectangle)
Back Light Compensation
BLC / HLC / DWDR
Video Compression
Instastream/ H.265/ Smart H.264+/ H.264/ H.264B/ MJPEG (only supported by the sub stream)
Bit Rate
H.264: 32 Kbps–6144 Kbps ; H.265: 12 Kbps–6400 Kbps
Event Trigger
Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception
SDK and API
Yes
Illumination Distance
Illumination Distance of 20 Mtr.
Smart Phone
iPhone, iPad, Android Phone
Power Source
12V DC/PoE (802.3af)
Power Consumption
Basic power consumption: 1.4W (12V DC); 2.2W (PoE) Max. power consumption (ICR + H.265+IR intensity): 4.2W (12V DC); 5.3W (PoE)
Ethernet
RJ-45 (10/100Base-T)
Casing
Metal + Plastic
Dimension
162.6 mm × Φ70 mm
62.6 mm × Φ70 mm Operating Temperature
-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Storage Temperature
-40° C ~ +60° C (-40° F ~ +140° F)
Weatherproof Standard
IP67
Weight
0.22kg
