CP-UNC-TB21L5-VMD-V2
Home
Products
CP-UNC-TB21L5-VMD-V2

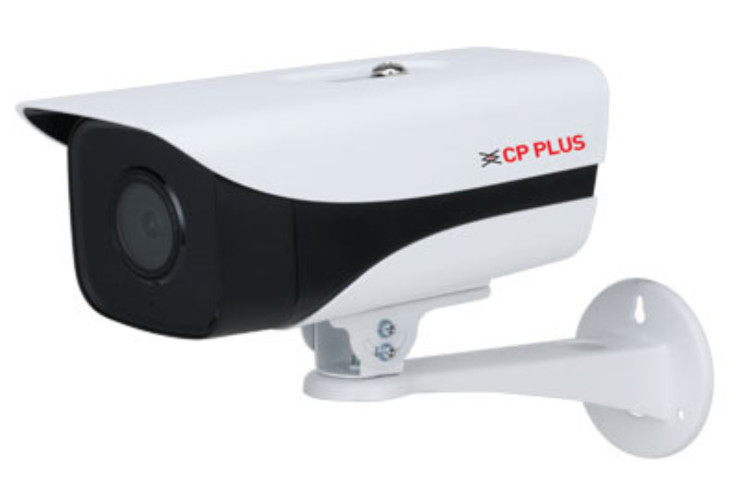

2MP Full HD WDR IR Network Bullet Camera
Add To Cart
Category:
Network Camera
Sub Category:
2 MP
SKU:
24687
Share:
Description
Additional Information
Ratings
1/2.8” 2Megapixel PS CMOS Image Sensor (0.9071 centimeters)
Max. 2MP (1920 × 1080)@25/30fps
Instastream/Smart H.264+ Dual-stream encoding
WDR(120dB), Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
3.6mm Fixed Lens (6mm Optional)
IR Range of 50 Mtrs, IP67, Micro SD Card, PoE
Support Starlight Technology
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Image Sensor
1/2.8” 2Megapixel progressive CMOS (0.9071 centimeters)
Minimum Illumination
0.002Lux@F1.6
Effective Pixels
1920 (H) × 1080 (V)
Shutter Speed
Auto/Manual, 1/3~1/100000s
S/N Ratio
>56dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Lens
3.6mm (6mm Optional)
Close Focus Distance
3.6mm: 1.2 m ; 6mm: 2.5 m
Gain Control (AGC)
Auto/Manual
Lens Type
Fixed
Video Compression
Instastream/H.265/Smart H.264+/H.264/H.264B; MJPEG (only supported by sub stream)
Angle of View
3.6mm: Horizontal 87° × Vertical 46° × Diagonal 104° 6mm: Horizontal 54° × Vertical 28° × Diagonal 63°
Back Light Compensation
BLC/ HLC/ WDR(120dB)
Max. Aperture
F1.6
Video Streaming
Main stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps)
Privacy Mask
4 areas
DORI Distance
3.6mm– 55.2m (Detect) 22.1m (Observe) 11.0m (Recognize) 5.5m (Identify) 6mm– 82.8m (Detect) 33.1m (Observe) 16.6m (Recognize) 8.3m (Identify)
ICR
Auto (ICR)/Color/B/W
Resolution
1080P (1920 × 1080); 1.3MP (1280 × 960); 720P (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
ROI
Yes (4 areas)
Motion Detection
OFF/ON (4 areas, rectangular)
Audio Input
1 channel (RCA port)
Audio Output
1 channel (RCA port)
Audio Compression
G.711a; G.711Mu; G726
Alarm IN
2 channels in: 5mA 3V–5V DC
Alarm Out
2 channels out: 300mA 12V DC
Smart Detection
Tripwire; intrusion
Protocol
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; SFTP; ICMP; IGMP; Bounjour, ONVIF (Profile S/Profile G/Profile T); CGI; InstaOn; Milestone; Genetec
Ethernet
RJ-45 (10/100Base-T)
Bit Rate
H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; scene changing, voltage detection; audio detection; safety exception; local alarm
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
SDK and API
Yes
Smart Phone
iPhone, iPad, Android Phone
IR
IR Range of 50 Mtr., Smart IR
Micro SD
FTP; Micro SD card (support max. 512GB); NAS; SFTP
Operating Temperature
-40° C ~ +60° C (-40° F ~ +140° F) / Less than <95% RH
Storage Temperature
-40°C to +60°C (–40°F to +140°F)
Power Source
12V DC/PoE (802.3af); 12V DC power output, max. current 165mA
Power Consumption
<9.9W
Weatherproof Standard
IP67
Casing
Metal
Dimension
194.1 mm × 96.4 mm × 89.5 mm (L × W × H)
Weight
0.725 kg
