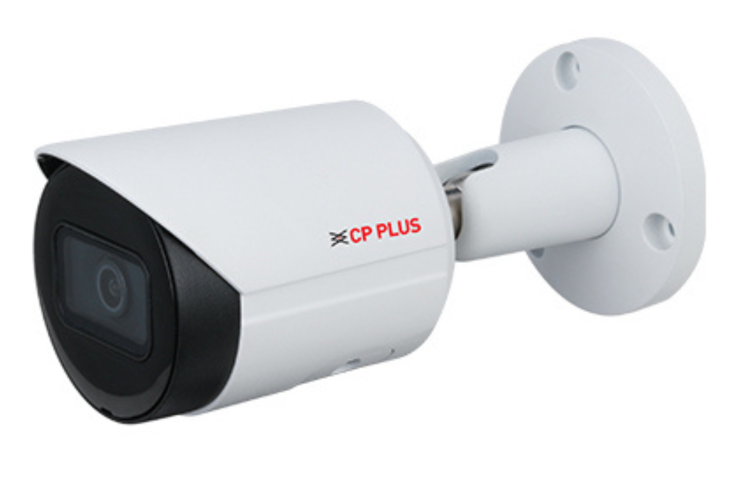

CP-UNC-TB51L3C-MDS

5MP WDR IR Network Bullet Camera - 30Mtr.

Category: Network Camera

Sub Category: 5 MP

SKU: 35469

1/2.7” 5MP PS CMOS Image Sensor (0.9407cm)
max. 5 MP (2960 × 1668) @20 fps, (2688 × 1520) @25/30 fps.
Smart Instastream , H.265, H.264, H.264H, H.264B, MJPEG
WDR(120dB), Day/Night(ICR), 3D-NR, ROI, AWB, AGC, BLC, HLC, Rotation Mode
3.6mm lens (2.8mm optional)
IR Range of 30 Mtrs, IP67, PoE, SMD Plus
Support Starlight Technology
Supports max. 256 GB Micro SD card, Built-in Mic.
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro

Image Sensor	1/2.7” 5MP PS CMOS Image Sensor (0.9407cm)
Minimum Illumination	0.007 [email protected] (Color, 30 IRE) 0.0007 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)
Max. Resolution	2960 (H) × 1668 (V)
Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
White Balance	Auto, Natural; Street lamp; Outdoor; Manual; Regional custom
RAM	256 MB
ROM	128 MB
Lens	3.6mm lens (2.8mm optional)
DORI Distance	3.6MM: 85.4 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify), 2.8MM: 63.6 m (Detect), 25.4 m (Observe), 12.7 m (Recognize), 6.4 m (Identify)
Close Focus Distance	2.8 mm: 1.1 Mtr , 3.6 mm: 1.7 Mtr
Lens Mount	M12
Max. Aperture	F1.6
Lens Type	Fixed-focal
Gain Control (AGC)	Auto/Manual
Angle of View	2.8 mm: H: 111°; V: 58°; D: 132° 3.6 mm: H: 92°; V: 45°; D: 110°
Pan, Tilt, Rotation	Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
S/N Ratio	﹥56 dB
Back Light Compensation	BLC / HLC / WDR(120dB)
stream Capability	2 streams
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Encode Strategy	Smart Instastream
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 32 kbps–8192 kbps, H.265: 12 kbps–8192 kbps
Resolution	2960 × 1668 (2960 × 1668); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Frame Rate	Main stream: 2960 × 1668@(1–20 fps)/2688 × 1520@ (1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Privacy Mask	4 areas
ROI	Support: 4 Areas
Audio Compression	G.711a; G.711Mu; PCM; G.726
Built-in Mic	Support
Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour, ONVIF (Profile S/Profile G/Profile T); CGI
Day/Night	Auto(ICR)/Color/B/W
SDK and API	Support
Ethernet	RJ-45 (10/100 Base-T)
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
User/Host	20 (Total bandwidth: 48 Mbps)
Cyber Security	Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
Smart Phone	iPhone, iPad, Android Phone
IR Distance	Up to 30 Mtr.
IR Control	Auto; Manual
IR Number	1 (IR LED)
Browser	IE, Chrome, Firefox
Mirror Function	Support
Storage	FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Smart IR	Support
IVS	Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Iris Control	Fixed
Weatherproof Standard	IP67
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	≤95%
Power Source	12 VDC/PoE (802.3af)
Power Consumption	Basic: 2.2 W (12 VDC); 2.9 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 4.1 W (12 VDC); 5.0 W (PoE)
Casing	Metal
Dimension	166.2 mm × 70 mm × 70 mm
Weight	0.48 kg
