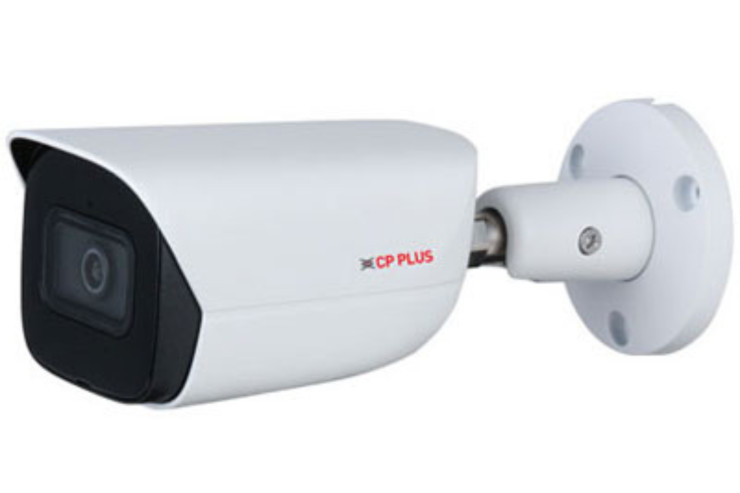

CP-UNC-TC21L5C-VMDS

2 MP Full HD WDR IR Network Bullet Camera - 50 Mtr.

Category: Network Camera

Sub Category: 2 MP

SKU: 41235

1/2.8” 2Megapixel PS CMOS Image Sensor (0.9071 cm)
Instastream and H.264+ triple-stream encoding
Max 25/30fps@1080P(1920×1080)
WDR(120dB), Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
IR Range of 50 Mtrs.
3.6mm fixed lens (2.8mm, 6mm optional)
Built-in Mic, Micro SD Card, IP67, PoE
Support Starlight Technology
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro

Image Sensor	1/2.8” 2Megapixel PS CMOS Image Sensor (0.9071 cm)
Minimum Illumination	0.002 [email protected] (Color, 30IRE) 0.0002 [email protected] (B/W, 30IRE) 0 Lux (IR on)
Effective Pixels	1920(H) x 1080(V)
Shutter Speed	Auto/Manual 1/3 s–1/100000 s
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Lens	3.6mm (2.8mm, 6mm optional)
Gain Control (AGC)	Auto/Manual
Video Compression	Instastream/H.265/H.264+/H.264/H.264H; H.264B; MJPEG
Angle of View	3.6mm: H: 87°; V: 46°; D: 104°, 2.8mm: H:106°; V: 57°; D: 126°, 6mm: H: 54°; V: 29°; D: 63°
Back Light Compensation	BLC / HLC / WDR(120dB)
Video Streaming	Main stream (1920 × 1080@1–25/30 fps) sub stream(704 × 576@1–25/30 fps) third stream(1280 × 720@1–25/30 fps)
Resolution	1080P (1920 × 1080); 1.3MP (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Motion Detection	OFF/ON (4 areas, rectangular)
Privacy Mask	4 areas
ICR	ICR auto switch
ROI	Yes (4 areas)
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Audio Compression	G.711a/ G.711Mu/ AAC/ G.726
Alarm IN	1 channels in: 5mA 3V–5V DC
Alarm Output	1 channel Out: 300mA 12VDC
Audio	Built-in Mic
Bit Rate	H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps
Protocol	IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; ONVIF (Profile S/ Profile G/Profile T); CGI; InstaOn; Milestone; Genetec
Smart Detection	Tripwire, Intrusion
Ethernet	RJ-45 (10/100Base-T)
Event Trigger	Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
User Account	20 users
Smart Phone	iPhone, iPad, Android Phone
IR	IR Range of 50 Mtr.
Micro SD	FTP; Micro SD Card (support max. 512GB); NAS
No of IR LEDs	1
Operating Temperature	-40°C to +60°C (-40°F to +140°F)/ less than≤95%
Intelligent Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Power Source	12V DC/PoE
Power Consumption	< 5.2W
Weatherproof Standard	IP67
Video Bit Rate	H.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps
Casing	Metal
Dimension	192.7 mm × 70.5 mm × 66.4 mm
Weight	590g
