CP-UNC-TC21L8-VMDS
Home
Products
CP-UNC-TC21L8-VMDS

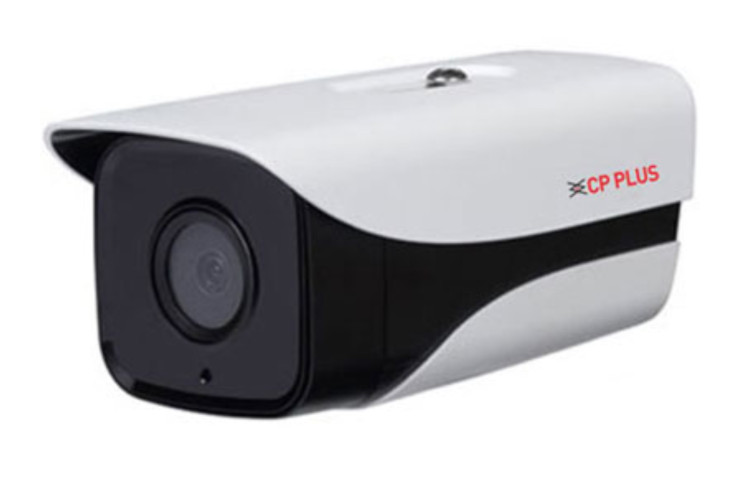

2MP Full HD WDR IR Network Bullet Camera - 80Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
2 MP
SKU:
32115
Share:
Description
Additional Information
Ratings
1/2.8” 2Megapixel PS CMOS Image Sensor (0.9071 centimeters)
Instastream and H.264+ triple-stream encoding
Max 25/30fps@1080P(1920×1080)
WDR(120dB), Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
IR Range of 80 Mtrs.
3.6mm fixed lens (6mm, 8mm, 12mm optional)
Micro SD Card, IP67, PoE
Support Starlight Technology
Support SMD Plus
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Image Sensor
1/2.8” 2Megapixel PS CMOS Image Sensor (0.9071 centimeters)
Minimum Illumination
0.002
[email protected]
Effective Pixels
1920(H) x 1080(V)
Shutter Speed
Auto/Manual, 1/3~1/100000s
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Lens
3.6mm (6mm, 8mm, 12mm optional)
Gain Control (AGC)
Auto/Manual
Video Compression
Instastream/H.265/H.264+/H.264/H.264H; H.264B; MJPEG
Angle of View
3.6mm: H: 87°; V: 46°; D: 104°, 6mm: H: 54°; V: 29°; D: 63°, 8mm: H: 41°; V: 22°; D: 47°, 12mm: H: 26°; V: 14°; D: 30°
S/N Ratio
More than 50dB
Back Light Comp.
BLC / HLC / WDR(120dB)
Video Streaming
Main stream (1920 × 1080@1–25/30 fps) sub stream(704 × 576@1–25/30 fps) third stream(1280 × 720@1–25/30 fps)
Resolution
1080P (1920 × 1080); 1.3MP (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Motion Detection
Off / On (4 Zone, Rectangle)
Privacy Mask
4 areas
ICR
ICR auto switch
ROI
Yes (4 areas)
Audio Input
1 Ch.
Audio Output
1 Ch.
Audio Compression
G.711a/ G.711Mu/ AAC/ G.726
Alarm IN
2 channels in: 5mA 3V–5V DC
Alarm Out
2 channel Out: 300mA 12VDC
Bit Rate
H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps
Protocol
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; ONVIF (Profile S/Profile G); CGI; InstaOn
Smart Detection
Tripwire, Intrusion
Ethernet
RJ-45 (10/100Base-T)
User Account
20 users
Smart Phone
iPhone, iPad, Android Phone
IR Range
IR Range of 80 Mtr.
Micro SD
FTP; Micro SD Card (support max. 512GB); NAS
Operating Temperature
-40°C to +60°C (-40°F to +140°F)/ less than≤95%
Power Source
12V DC/PoE
Power Consumption
<8.2W
Weatherproof Standard
IP67
Dimension
194.4 mm × 96.6 mm × 89.5 mm
Weight
755g
