CP-UNC-TC41L5C-VMDS
Home
Products
CP-UNC-TC41L5C-VMDS

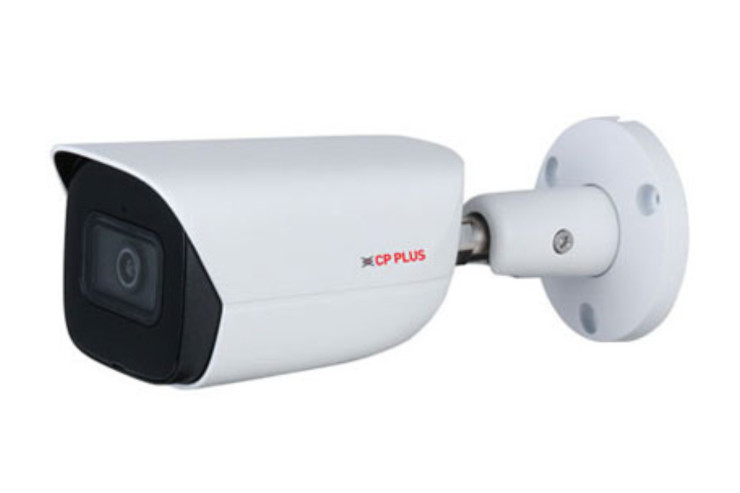

4MP WDR IR Network Bullet Camera - 50 Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
4 MP
SKU:
24687
Share:
Description
Additional Information
Ratings
1/2.7” 4Megapixel PS CMOS Image Sensor (0.9407 centimters)
Instastream, H.265 and H.264 triple-stream encoding
Max 25/30fps@4MP(2688×1520)
WDR(120dB), Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
IR Range of 50 Mtrs
3.6mm fixed lens (2.8mm, 6mm optional)
Built-in Mic, Micro SD Card, IP67, PoE
Support Starlight Technology
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Image Sensor
1/2.7” 4Megapixel PS CMOS Image Sensor (0.9407 centimters)
Minimum Illumination
0.005
[email protected]
(Color, 30IRE) 0.0005
[email protected]
(B/W, 30IRE) 0 Lux (IR on)
Effective Pixels
2688(H) x 1520(V)
S/N Ratio
>56dB
RAM & ROM
512MB & 128MB
Shutter Speed
Auto/Manual 1/3 s–1/100000 s
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Lens
3.6mm (2.8mm, 6mm optional)
Mount Type
M12
Iris Type
Fixed aperture
Lens Type
Fixed focal
Close Focus Distance
3.6 mm: 1.6m ; 2.8 mm: 0.9m; 6mm: 3.2m
Max Aperture
F1.6
DORI Distance
3.6mm– 80.0m (Detect) 32.0m (Observe) 16.0m (Recognize) 8.0m (Identify) 2.8mm– 56.0m (Detect) 22.4m (Observe) 11.2m (Recognize) 5.6m (Identify) 6mm– 120.0m (Detect) 48.0m (Observe) 24.0m (Recognize) 12.0m (Identify)
Gain Control (AGC)
Auto/Manual
Video Compression
Instastream/H.265/H.264+/H.264/H.264H; H.264B; MJPEG
Angle of View
3.6mm: H: 84°; V: 45°; D: 100°, 2.8mm: H:103°; V: 55°; D: 122°, 6mm: H: 52°; V: 28°; D: 61°
Back Light Compensation
BLC / HLC / WDR(120dB)
Video Streaming
Main stream (2688 × 1520@1–25/30 fps) sub stream (704 × 576@1–25/30 fps) third stream (1280 × 720@1–25/30 fps)
Resolution
4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Motion Detection
OFF/ON (4 areas, rectangular)
Privacy Mask
4 areas
ICR
ICR auto switch
ROI
Yes (4 areas)
Noise Reduction
3D-DNR
Audio Input
1 channel (RCA port)
Audio Output
1 channel (RCA port)
Audio Compression
G.711a/ G.711Mu/ AAC/ G.726
Audio
Built-in Mic
Alarm IN
1 channels in: 5mA 3V–5V DC
Alarm Output
1 channel Out: 300mA 12VDC
Protocol
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; ONVIF (Profile S/Profile G); CGI; P2P
Smart Detection
Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Ethernet
RJ-45 (10/100Base-T)
Bit Rate
H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps
Event Trigger
Motion detection, SMD, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection, Security Exception (Abnormality)
User Account
20 users
Smart Phone
iPhone, iPad, Android Phone
IR
IR Range of 50 Mtr.
No of IR LEDs
1
Micro SD
FTP; Micro SD Card (support max. 512GB); NAS
Browser
IE IE8, IE9, IE11, Google, Firefox
Operating Temperature
-40°C to +60°C (-40°F to +140°F)/ less than≤95%
Power Source
12V DC/PoE
Power Consumption
< 5.4W
Weatherproof Standard
IP67
Casing
Metal
Iris
Auto
Dimension
192.7 mm × 70.5 mm × 66.4 mm
Weight
590g
