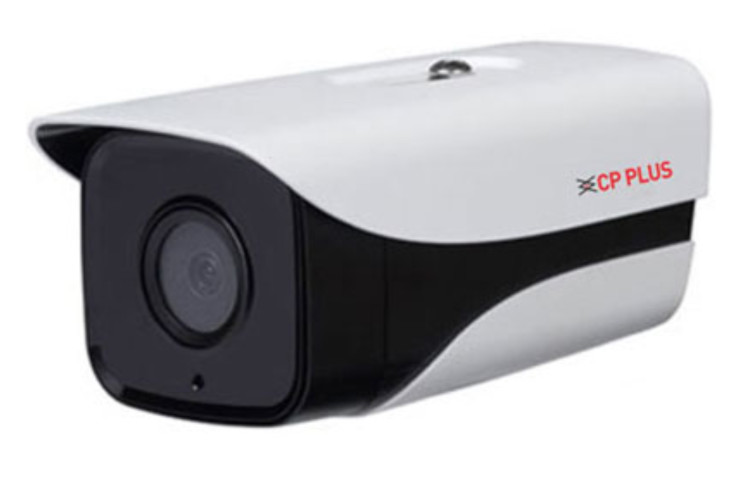

4 MP Full HD WDR IR Network Bullet Camera - 80 Mtr.
Image Sensor | 1/3” 4Megapixel PS CMOS Image Sensor (0.84667 cm) |
---|---|
Minimum Illumination | 0.005 [email protected] (Color, 30IRE) 0.0005 [email protected] (B/W, 30IRE) 0 Lux (IR on) |
Effective Pixels | 2688 (H) ×1520 (V) |
Shutter Speed | Auto/Manual, 1/3~1/100000s |
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
Lens | 3.6mm (6mm, 8mm, 12mm optional) |
Gain Control (AGC) | Auto/Manual |
Video Compression | H.265+/H.265/H.264+/H.264/H.264H; H.264B; MJPEG |
Angle of View | 3.6mm: H: 84°; V: 45°; D: 100°, 6mm: H: 52°; V: 28°; D: 61°, 8mm: H: 40°; V : 23°; D: 45° ,12mm: H: 24°; V: 14°; D: 29° |
Back Light Comp. | BLC / HLC / WDR(120dB) |
Video Streaming | Main stream (2688 × 1520@1–25/30 fps) sub stream (704 × 576@1–25/30 fps) third stream (1280 × 720@1–25/30 fps) |
Resolution | 2688 × 1520; 1080P (1920 × 1080); 1.3MP (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Motion Detection | Off / On (4 Zone, Rectangle) |
Privacy Mask | 4 areas |
ICR | ICR auto switch |
ROI | Yes (4 areas) |
Audio Input | 1 channel (RCA port) |
Audio Output | 1 channel (RCA port) |
Audio Compression | G.711a/ G.711Mu/ AAC/ G.726 |
Alarm IN | 2 channels in: 5mA 3V–5V DC |
Alarm Out | 2 channel Out: 300mA 12VDC |
Bit Rate | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
Protocol | HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; ONVIF (Profile S/Profile G); CGI; P2P |
Smart Detection | Tripwire; intrusion (Recognition of human and vehicle) |
Ethernet | RJ-45 (10/100Base-T) |
User Account | 20 users |
Smart Phone | iPhone, iPad, Android Phone |
IR Range | IR Range of 80 Mtr., Smart IR |
Micro SD | FTP; Micro SD Card (support max. 256 GB); NAS |
Operating Temperature | -40°C to +60°C (-40°F to +140°F)/ less than≤95% |
Power Source | 12V DC/PoE |
Power Consumption | <8.8W |
Weatherproof Standard | IP67 |
Dimension | 194.4 mm × 96.6 mm × 89.5 mm |
Weight | 755g |
