CP-UNC-TD41ZL6C-VMDS
Home
Products
CP-UNC-TD41ZL6C-VMDS

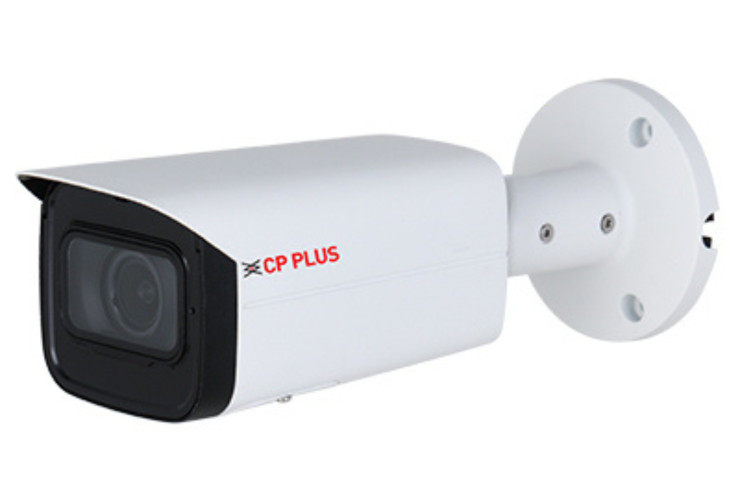

4MP Network IR Bullet Network Camera - 60Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
4 MP
SKU:
24687
Share:
Description
Additional Information
Ratings
1/3” 4MP PS CMOS Image Sensor (0.8466cm)
Max. Output 4MP(2688 × 1520)@25/30 fps
AI Instastream, Instastream, H.265, Smart H.264 encoding
WDR(120dB), Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, HLC, BLC
2.7mm~13.5mm Motorized Lens
IR Range of 60 Mtrs, Support Built in Mic, Micro SD Card, IP67, IK10(Optional), SMD 3.0
Support Starlight Technology
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Image Sensor
1/3” 4MP PS CMOS Image Sensor (0.8466cm)
Minimum Illumination
0.005
[email protected]
(Color, 30 IRE) 0.0005
[email protected]
(B/W, 30 IRE) 0 lux (IR on)
Effective Pixels
2688 (H) × 1520 (V)
BodyType
Bullet
Shutter Speed
Auto/Manual, 1/3~1/100000s
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Lens
2.7mm~13.5mm motorized Lens
S/N Ratio
>56dB
Gain Control (AGC)
Auto/Manual
Iris
Fixed
Video Compression
H.265, Smart H.264+, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
Max Aperture
F1.5
Encode Strategy
Instastream
DORI Distance
W: 64.0m(Detect) 25.6m(Observe) 12.8m(Recognize) 6.4m(Identify) T: 210.0m(Detect) 84.0m(Observe) 42.0m(Recognize) 21.0m(Identify)
Angle of View
Horizontal: 109°–30°, Vertical: 54° –16°, Diagonal: 125° –33°
Back Light Comp.
BLC / HLC / WDR(120dB)
Video Streaming
Main stream: 2688 × 1520 @ (1–25/30) fps Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) Sub stream 2: 1920 × 1080 @ (1–25/30 fps) Sub stream 3: 1280 × 720 @ (1–25/30 fps)
Resolution
4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304×1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Motion Detection
Off/ On (4 areas, rectangular)
Privacy Mask
Supported (4 areas)
ICR
Auto (ICR)/Color/B/W
ROI
Supported (4 areas)
Audio Input
1 channel (RCA port)
Audio
Built-in Mic
Audio Output
1 channel (RCA port)
Audio Compression
G.711a; G.711Mu; PCM; G.726; G.723
Alarm IN
1 channel in: 5mA 3V–5V DC
Alarm Out
1 channel Out: 300mA 12VDC
Bit Rate
H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; ONVIF (profile S, profile G, profile T); CGI; Instaon, Milestone, Genetec
Smart Detection
Tripwire; intrusion (support the classification and accurate detection of vehicle and human); face detection
Ethernet
RJ-45 (10/100Base-T)
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; SMD; security exception
SMD PLUS
Less false alarm, longer detection distance
User Account
20 (Total Bandwidth: 64 M)
SDK and API
Support
Smart Phone
iPhone, iPad, Android Phone
IR Range
IR Range of 40 Mtr., Smart IR
Cyber Security
Video encryption, Configuration encryption, Digest, WSSE, Account lockout, Security logs, IP/ MAC filtering, Generation and importing of X.509 certification, syslog, HTTPS, 802.1x, Trusted boot, Trusted execution, Trusted upgrade
Micro SD
NAS, FTP, SFTP; Mirco SD card (Max. 256GB)
Operating Temperature
-30 °C to +60 °C (–22 °F to 140 °F)
Storage Temperature
-40°C to +60°C (-40°F to +140°F)
Power Source
12 VDC/PoE (802.3af)
Power Consumption
Basic: 2.8 W (12 VDC); 3.6 W (PoE) Max. (WDR + IR intensity + Intelligence): 7.9 W (12 VDC); 9.2 W (PoE)
Humidity
Less than 95% RH
Weatherproof Standard
IP67, IK10(Optional)
Casing
Metal
Dimension
244.1mm × 79.0mm × 75.9mm (L × W × H)
Weight
0.820 g
