CP-UNC-VB21L3-MDS
Home
Products
CP-UNC-VB21L3-MDS

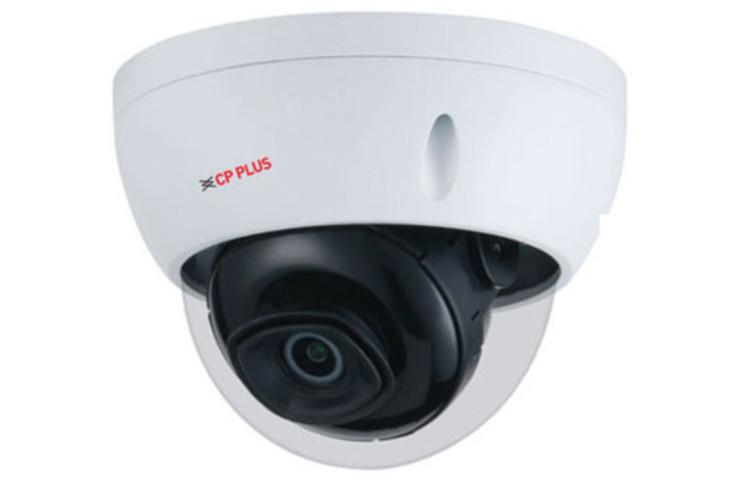

2 MP Full HD WDR IR Vandal Dome Camera - 30Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
2 MP
SKU:
24687
Share:
Description
Additional Information
Ratings
1/2.8” 2MP PS CMOS Image Sensor (0.9071 cm)
Max. 25/30fps@2MP (1920×1080)
Instastream and H.264+ stream encoding
WDR(120dB), Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
3.6mm fixed lens (2.8mm optional)
IR Range of 30 Mtrs, IP67, IK10, SD Card, PoE
Support Starlight Function
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Image Sensor
1/2.8” 2MP Progressive scan CMOS (0.9071 cm)
Minimum Illumination
0.002 Lux @ F1.6
Effective Pixels
1920(H) x 1080(V)
Shutter Speed
Auto/Manual 1/3 s–1/100000 s
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Lens
3.6mm fixed lens (2.8mm optional)
Gain Control (AGC)
Auto/Manual
Video Compression
Instastream/H.265/H.264+/H.264H/MJPEG (Sub Stream)
Angle of View
2.8mm- H: 106.0° V: 56.0° D: 126.0° , 3.6mm- H: 87.0° V: 46.0° D: 104.0°
Back Light Compensation
BLC / HLC / WDR(120dB)
Video Streaming
Main Stream: 1080P(1 ~ 25/30fps), Sub Stream: D1(1-25/30fps); Third Streaming* (Optional)- Main Stream: 1080P(1 ~ 25/30fps), Sub Stream: D1(1-25/30fps), Third stream: 704 × 480 (1 fps -25/30fps)
Resolution
1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
Digital Zoom
16x
Motion Detection
Off / On (4 Zone, Rectangle)
ICR
Auto(ICR)/Color/B/W
Privacy Mask
Off / On (4 Area, Rectangle)
ROI
Off / On (4 Area, Rectangle)
Bit Rate
H.265: 12K ~ 6400Kbps, H.264: 32K ~ 10240Kbps
Protocol
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP, ONVIF (Profile S/Profile G); CGI; InstaOn; Milestone; Genetec
Smart Detection
Tripwire, Intrusion
Ethernet
RJ-45 (10/100Base-T)
Event Trigger
Motion detection, Video tampering,Scene changing,Network disconnection,IP address conflict,Illegal acess,Storage anomaly
User Account
20 Users
IR
IR Range of 30 Mtr
Smart Phone
iPhone, iPad, Android Phone
Micro SD
FTP; Micro SD card (512GB); NFS; SAMBA
Storage Temperature
-40°C to +60°C (-40°F to +140°F)
Operating Temperature
-40°C to +60°C (-40°F to +140°F)
Humidity
≤95%
Power Source
DC12V, PoE (802.3af)
Power Consumption
<4.6W
Casing
Metal
Weatherproof Standard
IP67 & IK10
Dimension
Φ109.9mm × 81mm
Weight
0.34Kg
