CP-UNC-VB41ZL4-VMDS
Home
Products
CP-UNC-VB41ZL4-VMDS

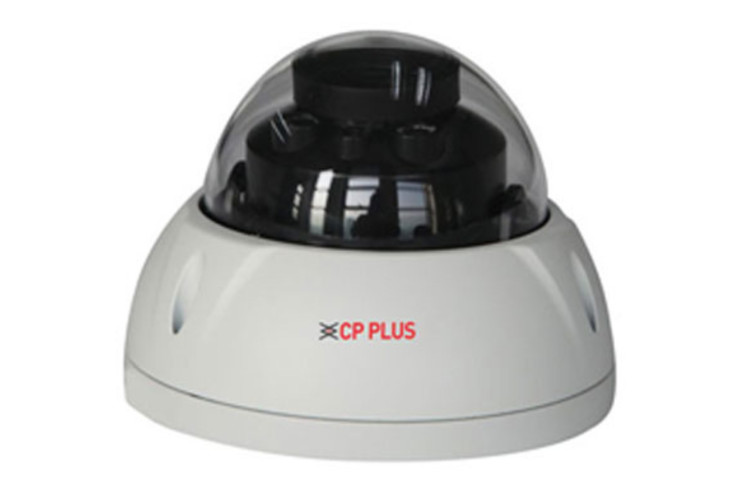

4MP Full HD WDR IR Vandal Dome Camera - 40Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
4 MP
Share:
Description
Additional Information
Ratings
1/3” 4MP PS CMOS Image Sensor (0.84667cm)
4MP(2560 × 1440)@25/30fps
Support Starlight Function
Instastream/ H.265/H.264/H.264B Dual-stream encoding
WDR(120dB), Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
2.7~13.5mm Motorized lens
IR Range of 40 Mtrs, IP67, IK10, Micro SD Card, PoE
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Image Sensor
1/3” 4MP PS CMOS Image Sensor (0.84667cm)
Minimum Illumination
0.01
[email protected]
Effective Pixels
2688 (H) × 1520 (V)
BodyType
Vandal Dome
Shutter Speed
Auto/Manual, 1/3~1/100000s
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Lens
2.7mm~13.5mm motorized Lens
Gain Control (AGC)
Auto/Manual
Max Aperture
F1.6
Video Compression
H.265/H.264+/H.264/H.264B; MJPEG
Encode Strategy
Instastream
DORI Distance
W- 64m (Detect) 25.6m (Observe) 12.8m (Recognize) 6.4m (Identify) T- 220m (Detect) 88m (Observe) 44m (Recognize) 22m (Identify)
Angle of View
Horizonal: 104°–27° Vertical: 55°–15° Diagonal: 124°–31°
Back Light Comp.
BLC / HLC / WDR(120dB)
Video Streaming
Main Stream: 2560 × 1440@25/30fps ; Sub Stream: 2688 × 1520@20fps, 704 × 576@25fps
Resolution
2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720);D1 (704 × 576/704 × 480)
Motion Detection
Disable/Enable (4 areas, rectangle)
Privacy Mask
4 areas
ICR
ICR switch
ROI
Yes (4 areas)
Audio Input
1 (RCA port)
Audio Output
1 (RCA port)
Audio Compression
G.711a; G.711Mu; G.726; AAC
Alarm IN
1 channel In: 5mA 5VDC
Alarm Out
1 channel Out: 300mA 12VDC
Bit Rate
H.264: 32 Kbps–6144 Kbps, H.265: 12 Kbps–6144 Kbps
Protocol
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS Layer 3 DiffServ; SNMPv1/v2c/v3 (MIB-II); UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP; ONVIF (Profile S/Profile G/profile T); CGI; Milestone; Genetec
Event Trigger
Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
Smart Detection
Tripwire, Intrusion
Ethernet
RJ-45 (10/100Base-T)
User Account
20 Users
Smart Phone
iPhone, iPad, Android Phone
IR Range
IR Range of 40 Mtr.
Micro SD
Micro SD Card (support max. 512GB); FTP, NFS
Operating Temperature
-30°C~+60°C , Less than 95%RH
Power Source
12V DC/PoE (802.3af)
Power Consumption
1.9W (12V DC); 2.8W (PoE)
Weatherproof Standard
IP67 & IK10
Casing
Metal
Dimension
φ122mm x 88.9mm
Weight
0.47kg
