CP-UNC-VB51ZL4-VMDS-V2
Home
Products
CP-UNC-VB51ZL4-VMDS-V2

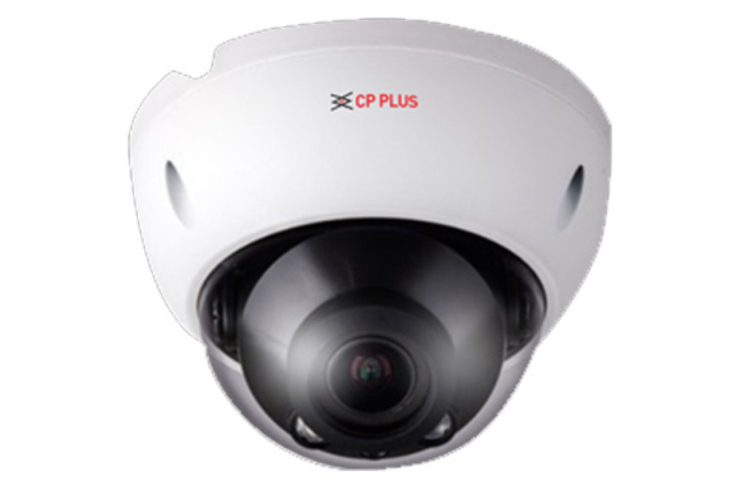

5MP Network IR Vandal Dome Camera - 40Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
5 MP
SKU:
24687
Share:
Description
Additional Information
Ratings
1/2.7” 5MP PS CMOS Image Sensor(0.9407Cm)
Max. Output 5MP(2592 × 1944)@20 fps, and supports 4MP (2688×1520)@25/30 fps
Support Starlight Technology
Instastream, Smart H.264, Dual stream encoding
WDR(120dB), Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, BLC
2.7~13.5mm Motorized lens
IR Range of 40 Mtrs, IP67, IK10, Micro SD Card, SMD Plus
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Image Sensor
1/2.7” 5MP PS CMOS Image Sensor(0.9407Cm)
Minimum Illumination
0.005
[email protected]
(Color,30 IRE) 0.0005
[email protected]
(B/W,30 IRE) 0 lux (Illuminator on)
Effective Pixels
2592(H) x 1944(V)
BodyType
Vandal Dome
Shutter Speed
Auto/Manual, 1/3~1/100000s
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Lens
2.7mm~13.5mm motorized Lens
Gain Control (AGC)
Auto/Manual
Video Compression
Instastream; H.265; Smart H.264+; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Angle of View
H: 100°–30° V: 72° –23° D: 134° –38°
Back Light Comp.
BLC / HLC / WDR(120dB)
Video Streaming
Main stream: 2592 × 1944@(1–20 fps)/2688 × 1520@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Resolution
5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Motion Detection
OFF/ON (4 areas, rectangular)
Privacy Mask
4 areas
ICR
Auto(ICR)/Color/B/W
ROI
Supported (4 areas)
Audio Input
1 (RCA port)
Audio Output
1 (RCA port)
Audio Compression
G.711a; G.711Mu; G.726; AAC
Alarm IN
1 channel In: 5mA 5VDC
Alarm Out
1 channel Out: 300mA 12VDC
Bit Rate
H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; ONVIF(Profile S, Profile G, Profile T); CGI; Genetec; Milestone; InstaOn Cloud
Smart Detection
Intrusion, Tripwire (the two functions support the classification and accurate detection of vehicle and human)
Ethernet
RJ-45 (10/100Base-T)
User Account
20 (Total Bandwidth: 64M)
Smart Phone
iPhone, iPad, Android Phone
IR Range
IR Range of 40 Mtr.
Micro SD
FTP, SFTP, NAS, Micro SD Card (support max. 512GB)
Operating Temperature
-30 °C to +60 °C (–22 °F to +140 °F) , Less than 95%RH
Power Source
12V DC/PoE (802.3af)
Power Consumption
Basic: 3.1 W (12 VDC); 4 W (PoE) Max(WDR + IR intensity + Intelligence on): 6.9 W (12 VDC); 8.1 W (PoE)
Weatherproof Standard
IP67 & IK10
Dimension
88.9 mm × Φ122 mm
Weight
0.492g
