CP-UNC-VD21ZL4C-VMDS
Home
Products
CP-UNC-VD21ZL4C-VMDS

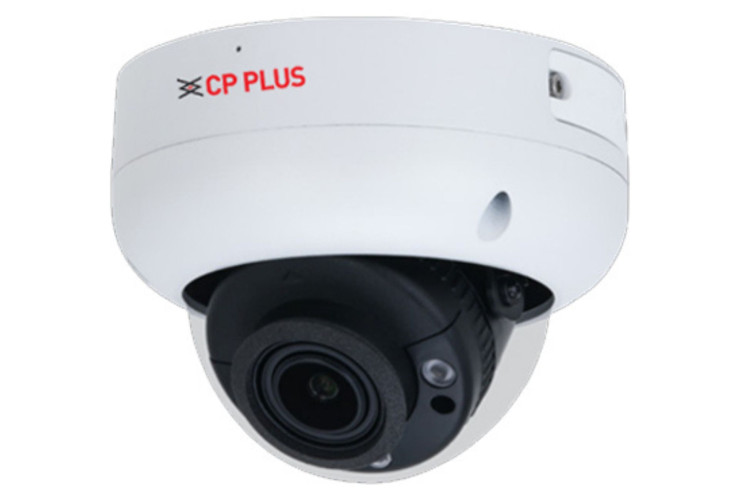

2MP Full HD Network IR Vandal Dome Camera - 40Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
2 MP
SKU:
10000
Share:
Description
Additional Information
Ratings
1/2.8” 2MP PS CMOS Image Sensor(0.9071Cm)
Max. Outputs 2 MP (1920 × 1080) @50/60 fps
AI Instastream, Instastream, H.265, H.264 encoding
WDR(120dB), Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
2.7mm~13.5mm Motorized Lens
IR Range of 40 Mtrs, IP67, IK10, Micro SD Card, Support Built-in Mic, SMD 3.0
Supports Starlight Technology
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Image Sensor
1/2.8” 2MP PS CMOS Image Sensor(0.9071Cm)
Minimum Illumination
0.002
[email protected]
(Color, 30 IRE) 0.0002
[email protected]
(B/W, 30 IRE) 0 lux (Illuminator on )
Effective Pixels
1920 (H) × 1080 (V)
BodyType
Vandal Dome
Shutter Speed
Auto/Manual, 1/3~1/100000s
White Balance
Auto, natural, street lamp, outdoor, manual, regional custom
Lens
2.7mm~13.5mm motorized Lens
S/N Ratio
>56 dB
Gain Control (AGC)
Auto/Manual
Iris
Fixed
Video Compression
H.265;Smart H.264+, H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Max Aperture
F1.5
Encode Strategy
Instastream, AI Instastream
DORI Distance
W: 44.1.0m(Detect) 17.6m(Observe) 8.8m(Recognize) 4.4m(Identify) T: 144.8m(Detect) 57.9m(Observe) 28.9m(Recognize) 14.8m(Identity)
Angle of View
Horizontal: 109°–30° Vertical: 56° –17° Diagonal: 137° –35°
Back Light Comp.
BLC / HLC / WDR(120dB)
Video Streaming
Main stream: 1920 × 1080 @ (1–50/60) fps Sub stream 1: 704 × 576 @ (1–50 fps)/704 × 480@(1–60 fps) Sub stream 2: 1920 × 1080 @ (1–50/60 fps) Sub stream 3: 1280 × 720 @ (1–50/60 fps)
Resolution
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Motion Detection
Off / On (4 Zone, Rectangle)
Privacy Mask
4 areas
ICR
Auto (ICR)/Color/B/W
ROI
Supported (4 Zone)
Audio Input
1 channel (RCA port)
Audio
Built-in Mic
Audio Output
1 channel (RCA port)
Audio Compression
G.711a; G.711Mu; PCM; G.726; G.723
Alarm IN
1Ch. In: 5mA 5VDC
Alarm Out
1 channel Out: 300mA 12VDC
Bit Rate
H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
Protocol
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP, InstaOn Cloud, ONVIF (Profile- S,G,T), PSIA, CGI, Milestone, Genetec
Smart Detection
Tripwire, Intrusion (support the classification and accurate detection of vehicle and human)
Ethernet
RJ-45 (10/100Base-T)
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; SMD; security exception
SMD Plus
Less false alarm, longer detection distance
User Account
20 (Total bandwidth: 64 M)
SDK and API
Yes
Smart Phone
iPhone, iPad, Android Phone
IR Range
IR Range of 40 Mtr., Smart IR
Cyber Security
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog;; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Micro SD
Micro SD Card (256GB), FTP, SFTP, NAS
Intelligent Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Operating Temperature
-30 °C to +60 °C (–22 °F to 140 °F)
Storage Temperature
-40°C to +60°C (-40°F to +140°F)
Power Source
12 VDC/PoE (802.3af)
Power Consumption
Basic: 2.3 W (12 VDC); 2.9 W (PoE) Max. (WDR + IR intensity + Intelligence): 6.6 W (12 VDC); 7.7 W (PoE)
Humidity
Less than 95% RH
Weatherproof Standard
IP67 & IK10
Casing
Metal
Dimension
94 mm × Φ122 mm
Weight
713 g
