CP-UNP-Z3021U-D

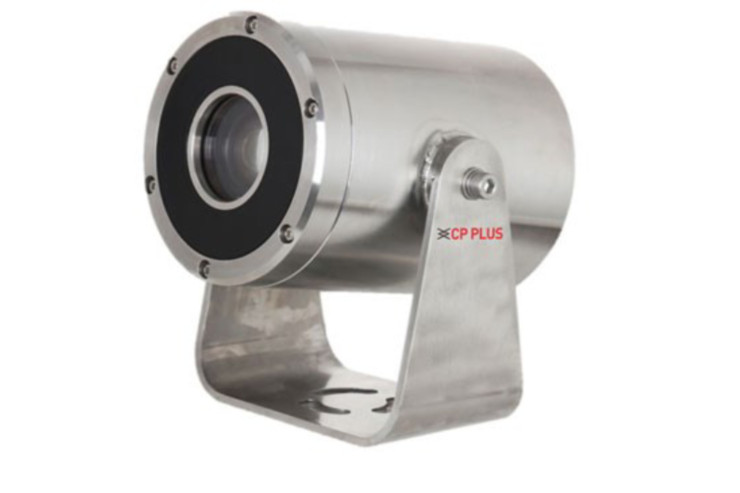

2MP 30x Anti- Corrosion IR Network Camera

Category: Network Camera

Sub Category: 2 MP

SKU: 24687

Image Sensor	1/2.8” PS CMOS (0.9071 centimeters)
Effective Pixels	1920(H) x 1080(V)
Resolution	2MP
S/N Ratio	More than 55dB
Minimum Illumination	Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
Shutter Speed	1/1s~1/30,000s
Focal Length	4.5mm~135mm Lens
White Balance	Auto, ATW, Indoor, Outdoor, Manual
AGC Control	Auto / Manual
Back Light Compensation	BLC / HLC / WDR(120dB)
Optical Zoom	30x
Digital Zoom	16x
Day/Night: IR Cut Filter	Auto(ICR) / Color / B/W
Video Compression	H.265+/H.265/H.264+/H.264
Video Streaming	Main stream: 1080P(1 ~ 50/60fps), 1.3MP/720P(1 ~ 25/30fps), Sub stream1: D1/CIF(1 ~ 25/30fps), Sub stream2: 1080P/1.3MP/720P(1~25/30fps)
Motion Detection	Support
Audio Compression	G.711a/G.711Mu/AAC/G.722 /G.726/G.729/MPEG2-L2
ROI	Support
Audio Streaming	1/1 channel In/Out
Networking	RJ-45 (10/100Base-TX)
Protocols	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x, ONVIF, PSIA, CGI
Alarm	2/2 channel In/Out
IR Range	IR Range of 100 Mtr.
Operating Temperature	-40°C ~ 70°C / Less than 95% RH
Smart Phone	iPhone, iPad, Android Phone
Memory	Micro SD card 128GB
Weatherproof Standard	IP68
Dimension	Φ180mm x 193mm x 201.5mm
Power Source	AC24V (optional)/ DC12V(optopnal)/PoE
Power Consumption	10W,25W (Heater on, IR on)
Weight	6.0kg
