CP-UNR-4K6128R16-V2
Home
Products
CP-UNR-4K6128R16-V2

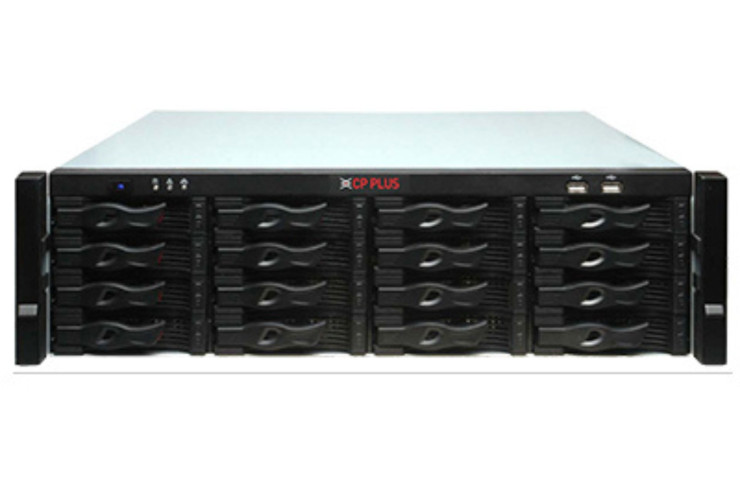

128 Ch. H.265 4K Network Video Recorder
Add To Cart
Category:
Network Video Recorder (NVR)
Sub Category:
128 Ch.
SKU:
32115
Share:
Description
Additional Information
Ratings
Up to 128 channel IP camera input
Up to 12MP resolution preview and playback
Max 384Mbps incoming bandwidth
Support 16 SATA III ports, up to 10TB Each, 4 USB(2 USB3.0), 1 eSATA port
Support iSCSI and Mini SAS to expand storage space
2 HDMI / 1 VGA simultaneous video output
Support Multi-brand network cameras
Support RAID 0/1/5/6/10
ONVIF Version 2.4 conformance
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Processor
Intel Quad-core Processor
Operating System
Embedded LINUX
IP Camera Input
128 channel
Two-way Talk
1 channel Input, 1 channel Output, RCA
User Interface
GUI
Video Output
2 HDMI(up to 3840× 2160), 1 VGA
Video Resolution
3840× 2160, 1920× 1080, 1280× 1024, 1280× 720, 1024× 768
Channel
128 channel
Motion Detection
MD Zones: 396(22×18).
Video Loss
supports
Alarm Input
16ch, low level effective, green terminal interface
Alarm Output
8 Channel, NO/NC Programmable, Green Terminal Interface
Smart Phone
iPhone, iPad, Android
Camera Blank
Supports
Hard Disk
16 SATA III ports, up to 10TB Each, 1 eSATA
Trigger Events
Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Bandwidth Incoming
384
Video Compression
H.265/H.264 / MJPEG
HDD Management
single, Raid 0/1/5/6/10 (Support global HDD hot-spare)
Video Recording
384Mbps
Recording Mode
Manual, Schedule (Regular, MD (Motion Detection),Alarm, IVS), Holiday, Stop
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Backup Mode
USB Device/Network/eSATA Device
Playback
128Mbps in Raid 5 mode, 64Mbps in single HDD mode
Max User Account
128 users
Record Interval
1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30sec, Post-record: 10 ~ 300 sec
Ethernet
4 RJ-45 ports (10/100/1000Mbps)
Interface Ports
4 USB ports(3 USB2.0, 1 USB3.0), 1 Mini SAS port, for storage expansion, 1 RS485, 1 RS232
Protocols
HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP,SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,Alarm Server, IP Search , ONVIF 2.4, CGI Conformant
Power Supply
AC100V~240V, 50~60Hz
Power Consumption
<51W(without HDD)
Working Temp
-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Dimension
485mm x 512.9mm x 133.2mm
Weight
17.6kg (without HDD)
