CP-UVR-0401E1-IC2
Home
Products
CP-UVR-0401E1-IC2

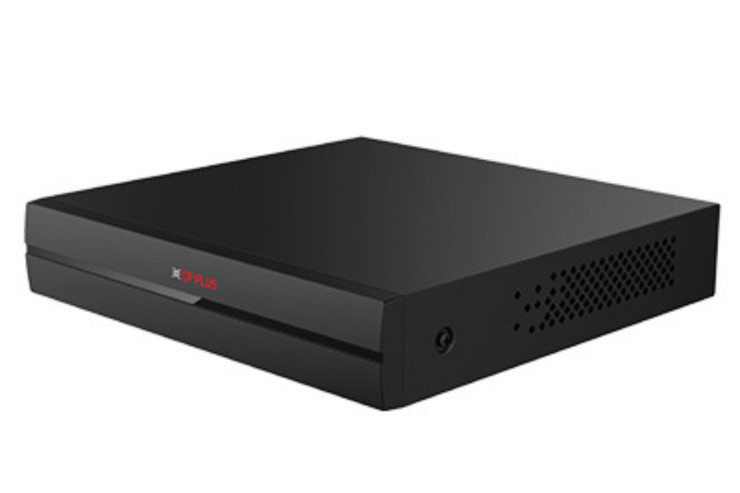

4Ch. 1080N Digital Video Recorder
Add To Cart
Category:
Digital Video Recorder (DVR)
Sub Category:
4 Ch.
SKU:
12436
Share:
Description
Additional Information
Ratings
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth
Supports Full-channel AI Instastream
Instastream/H.265 dual-stream video compression
Up to 4 channels video stream (analog channel) SMD Plus.
Support 1 SATA HDD up to 6TB, 2 USB Ports
1 HDMI / 1 VGA Simultaneous Video Output
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Processor
Embedded processor
Operating System
Embedded LINUX
IP Camera Input
4+1 channels, each channel up to 2MP
Two-way Talk
Reuse audio in/out, RCA
User Interface
GUI
Video Output
1 HDMI, 1 VGA
Performance SMD Plus
4 Channels
AI Search SMD
Search by target classification (Human, Vehicle)
Video Recording
Main Stream: All channels 1080N/720P/960H/D1/CIF/(1~25/30fps) Sub stream: CIF (1~15 fps)
Resolution
1080N; 720P; 960H; D1; CIF
Video Compression
AI Instastream/Instastream/H.265/H.264+/H.264
Video Display Split
1/4
Video Channel
4 channel, BNC
Audio Compression
G.711A, G.711U, PCM
Audio Output
1 channel, RCA
Audio Input
1 channel, RCA
Motion Detection
Support
Video Loss
Support
Bit Rate
32 kbps–4096 kbps per channel
Smart Phone
iPhone, iPad, Android Phone
Hard Disk
1 SATA port, up to 6TB
Camera Blank
Support
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Recording Mode
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Backup Mode
USB Device/Network
Playback
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
Max User Account
128 users
Record Interval
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet
1 RJ-45 port (100Mbps)
Interface Ports
2 USB Ports (USB 2.0)
Protocols
HTTP; HTTPS; TCP/IP; IPv4/IPv6; 3G/4G; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; InstaOn cloud; IP Search, ONVIF 16.12, CGI Conformant
Power Supply
DC12V/1.5A
Power Consumption
<7W (without HDD)
Working Temp
-10°C ~ +45°C (+14°F ~ +113°F), 10 ~ 90% RH
Dimension
198 mm × 203.0 mm × 41.5 mm
Weight
0.57kg (without HDD)
