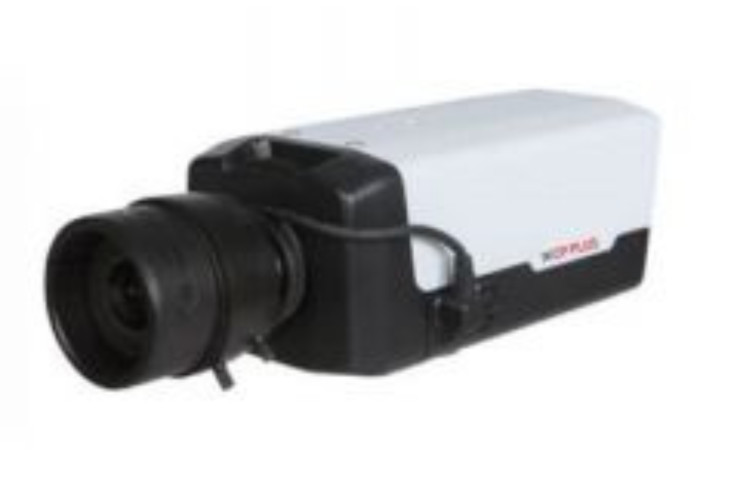

CP-VNC-B21-VMD

2 MP Full HD WDR Box Camera

Category: Network Camera

Sub Category: 2 MP

SKU: 24687

1/2.8” 2MP PS CMOS Image Sensor (7.112 centimeters)
Max 25/30fps@1080P
Ultra 265, H.264, MJPEG Triple-stream Encoding
WDR(120dB), Day/Night (ICR), 2D/3D-DNR, Defog, Corridor mode, AWB, AGC, ROI, BLC, HLC
C/CS Mount lens, Micro SD, PoE
6 KV surge protection designed for network interface
Support Instastream technology, save diskspace and bandwidth upto 70%
Mobile Software: Android, iOS
CMS Software: IVMS
*Only for UAE

Image Sensor	1/2.8” 2MP PS CMOS Image Sensor (7.112 centimeters)
Minimum Illumination	Colour: 0.0005 Lux (F1.2, AGC ON) B/W:0.0001 Lux(F1.2, AGC ON)
BodyType	Box
Shutter Speed	Auto/Manual, 1~1/100000 s
White Balance	Auto/Manual
Lens	C/CS Mount Lens
AGC Control	Auto/Manual
Video Compression	Ultra 265, H.264, MJPEG
S/N Ratio	>52dB
Back Light Comp.	BLC/ HLC/WDR(120dB)
Frame Rate	Main Stream:2MP (1920×1080): Max. 30 fps; Sub Stream: 2MP (1920×1080): Max. 30 fps; Third Stream:D1 (720×576): Max. 30 fps
Video Streaming	Triple
Video Output	1 BNC, impedance 75 O; amplitude 1 V [p-p]
Resolution	1920 × 1080
Motion Detection	Up to 4 areas
Privacy Mask	Up to 8 areas
ICR	IR-cut filter with auto switch (ICR)
ROI	Up to 8 areas
Interface	1 RS485 (support Pelco-D/P)
Audio Input	impedance 35 kO; amplitude 2 V [p-p]
OSD	Up to 8 OSDs
Audio Output	impedance 600 O; amplitude 2 V [p-p]
Audio Compression	G.711
Audio	Two-way audio Supported
Alarm IN	2 Ch. IN
Alarm Out	1 Ch. Out
Protocol	IPv4, IGMP,ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP,DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, QoS , ONVIF (Profile S & G), API
Ethernet	10M/100M Base-TX Ethernet
Micro SD	Micro SD, up to 256 GB
Operating Temperature	-20°C ~ +60°C (-4°F ~ 140°F)
Humidity	10%~90% RH (non-condensing)
Power Source	24 V AC±10%, 12 V DC±10%, PoE (IEEE802.3 af)
Power Consumption	Max 6.8W
Dimension	151.5 x 71 x 65 mm (6.0“ x 2.8“ x 2.6”)
Weight	0.48 kg
