CP-VNC-T41ZR5-VMD-V2
Home
Products
CP-VNC-T41ZR5-VMD-V2

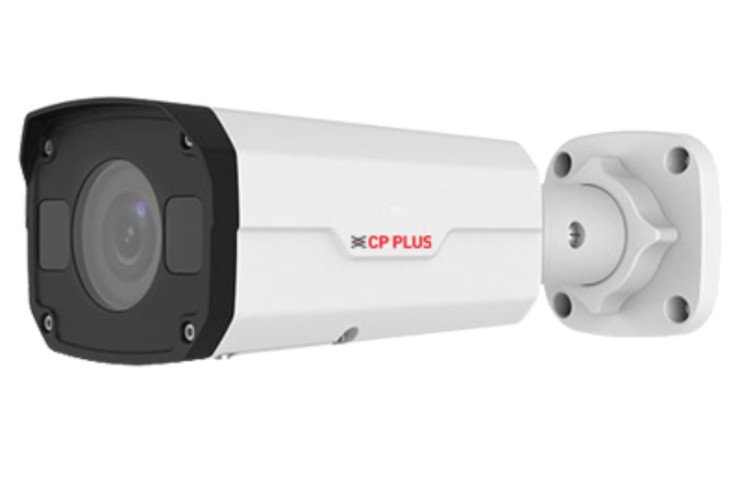

4 MP WDR Array Network Bullet Camera - 50Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
4 MP
SKU:
42338
Share:
Description
Additional Information
Ratings
1/3” 4Megapixel PS CMOS Image Sensor (0.8467 centimeter)
Max 30fps@4MP
Ultra 265, H.265, H.264,MJPEG triple-stream encoding
WDR(120dB), Day/Night (ICR), 2D/3D-DNR, Digital Defog, ROI, AWB, AGC, BLC, HLC
2.8~12mm Motorized lens
Array Range of 50 Mtrs, Micro SD Card, IP67, PoE
Support Instastream technology, save diskspace and bandwidth upto 70%
Mobile Software: Android, iOS
CMS Software: IVMS
*Only for UAE
Image Sensor
1/3” 4Megapixel progressive CMOS (0.8467 centimeter)
Minimum Illumination
Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on
Effective Pixels
2688x1520
BodyType
Bullet
Shutter Speed
Auto/Manual, 1~1/100000s
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Lens
2.8~12mm Motorized
Gain Control (AGC)
Auto/Manual
Angle of View
98.26°~ 31.35° (H), 54.76°~ 18.55° (V), 127.74°~36.99° (O)
Video Compression
Ultra 265, H.265, H.264, MJPEG
Wavelength
850nm
Lens Type
Motorized
S/N Ratio
>56dB
Max Aperture
F1.6
Back Light Compensation
BLC / HLC / WDR(120dB)
Video Streaming
Main Stream: 4MP (2688x1520), Max 30fps; 4MP (2560x1440), Max 30fps; 3MP (2304x1296), Max 30fps; 1080P(1920x1080),Max30fps Sub Stream: 4CIF (704x576), Max 30fps; Third Stream: CIF (352x288), Max 30fps
DORI Distance
2.8mm– 63m (Detect) 25.2m (Observe) 12.6m (Recognize) 6.3m (Identify); 12mm– 270m (Detect) 108m (Observe) 54m (Recognize) 27m (Identify)
Flip
Normal/Vertical/Horizontal/180°
Video Output
N/A
Motion Detection
Up to 4 areas
Privacy Mask
Up to 4 areas
ICR
IR-cut filter with auto switch (ICR)
ROI
Up to 2 areas
Audio Compression
G.711
Audio Input
1 Input: impedance 35kΩ; amplitude 2V [p-p]
Audio Output
1 output: impedance 600Ω; amplitude 2V [p-p]
Alarm IN
1 channel
Alarm Out
1 channel
Bit Rate
128 Kbps~16 Mbps
Protocol
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL , ONVIF (Profile S, Profile G, Profile T), API
Smart Detection
Intrusion, Human Body Detection, Motion detection, Tampering alarm, Audio Detection
Ethernet
1 x RJ45 10M/100M Base-TX Ethernet
Smart Phone
iPhone, iPad, Android Phone
IR Range
Array Range of 50 Mtr., Smart IR
Micro SD
Micro SD, up to 256GB
Operating Temperature
-30°C~60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Power Source
DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption
Max 9.5W
Weatherproof Standard
IP67 & IK10
Dimension
240.3 × 86.4 × 75.6mm (9.5” × 3.4” × 3.0”) (L × W × H)
Casing
Metal
Weight
1.0kg
