CP-VNC-T4K81R3-D
Home
Products
CP-VNC-T4K81R3-D

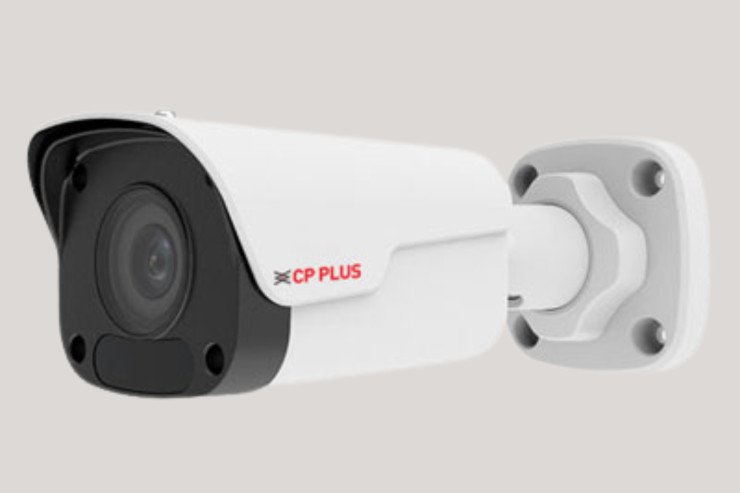

4K WDR Array Network Bullet Camera - 30Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
8 MP
SKU:
3216
Share:
Description
Additional Information
Ratings
1/3", 8MP, progressive scan, CMOS Image Sensor (0.84667cm)
8MP (3840x2160)@20fps; 5MP (2944x1656)@30fps; 4MP (2560x1440)@30fps; 2MP (1920x1080)@30fps
Ultra 265, H.265, H.264,MJPEG triple-stream encoding
WDR(120dB), Day/Night (ICR), 2D/3D-DNR, Digital Defog, ROI, AWB, AGC, BLC, HLC
2.8mm Fixed Lens (3.6mm Optional)
Array Range of 30 Mtrs., IP67, PoE
Support Instastream technology, save diskspace and bandwidth upto 70%
Mobile Software: Android, iOS
CMS Software: IVMS
*Only for UAE
Image Sensor
1/3” 8MP Progressive scan CMOS (0.84667cm)
Minimum Illumination
Colour: 0.05Lux (F2.0, AGC ON) 0Lux with IR on
BodyType
Bullet
Shutter Speed
Auto/Manual, 1~1/100000s
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Lens
2.8mm (3.6mm Optional)
Gain Control (AGC)
Auto/Manual
Angle of View
2.8mm- 112.7°(H), 60.1°(V), 146.5°(O) ; 3.6mm- 86.5°(H), 44.1°(V), 106.4°(O)
Video Compression
Ultra 265, H.265, H.264, MJPEG
Wavelength
850nm
Lens Type
Fixed
S/N Ratio
>56dB
Max Aperture
F2.0
Back Light Compensation
BLC / HLC / WDR(120dB)
Video Streaming
Main Stream: 8MP (3840x2160), Max 20fps;5MP (2944x1656), Max 30fps; 4MP (2560x1440), Max 30fps; 1080P (1920x1080), Max 30fps Sub Stream: 720P (1280x720): Max. 20fps; Third Stream: 4CIF (704x576): Max. 20fps
DORI Distance
2.8mm- 84(Detect) 33.6(Observe) 16.8(Recognize) 8.4(Identify); 3.6mm– 120(Detect) 48(Observe) 24(Recognize) 12(Identify)
Flip
Normal/Vertical/Horizontal/180°
Motion Detection
Up to 4 areas
Privacy Mask
Up to 4 areas
ICR
IR-cut filter with auto switch (ICR)
ROI
Up to 2 areas
Bit Rate
128 Kbps~16 Mbps
Protocol
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL , ONVIF (Profile S, Profile T), API
Ethernet
1 x RJ45 10M/100M Base-TX Ethernet
Smart Phone
iPhone, iPad, Android Phone
IR Range
Array Range of 30 Mtr., Smart IR
Operating Temperature
-30°C~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Power Source
DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption
Max 5.5W
Weatherproof Standard
IP67
Dimension
167.3mm x 62.9mm x 62.7mm (6.6”×2.5”×2.5”) (L × W × H)
Casing
Metal
Weight
0.45kg
