CP-VNC-T51ZR5-VMD
Home
Products
CP-VNC-T51ZR5-VMD

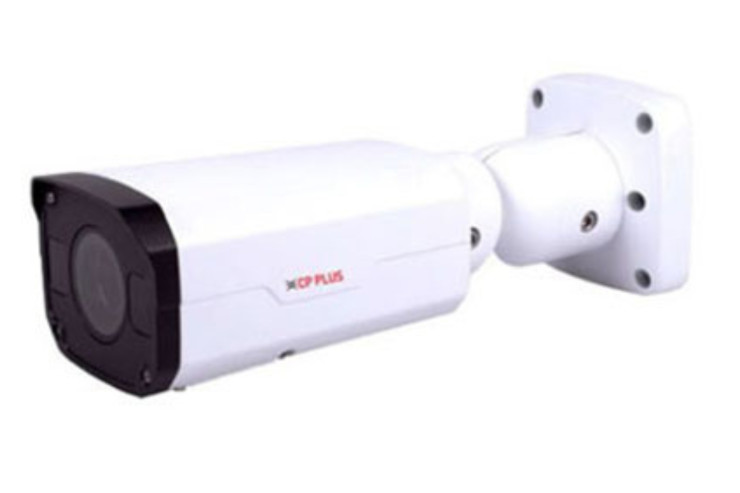

5 MP Full HD WDR Array Bullet Camera - 50Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
5 MP
SKU:
73945
Share:
Description
Additional Information
Ratings
1/2.7” 5MP PS CMOS Image Sensor (6.858 centimeters)
5MP(2592 x 1944): Max. 25 fps
Ultra 265,H.265, H.264, MJPEG Triple-stream Encoding
WDR(120dB), Day/Night(ICR), 2D/3D-DNR,Corridor mode, ROI,Digital defog, AWB, AGC, BLC, HLC
2.7~13.5mm Motorized lens
Array Range of 50 Mtrs, Smart IR, Micro SD Card, IP67, PoE
Mobile Software: Android, iOS
CMS Software: IVMS
*Only for UAE
Image Sensor
1/2.7” 5MP Progressive scan CMOS (6.858 centimeters)
Minimum Illumination
Colour: 0.002Lux (F1.2, AGC ON) 0Lux with IR on
BodyType
Bullet
Shutter Speed
Auto/Manual, shutter time: 1~1/100000 s
White Balance
Auto/Manual
Lens
2.7~13.5mm Motorized Lens
Gain Control (AGC)
Auto/Manual
Video Compression
Ultra 265,H.265, H.264, MJPEG
Angle of View
93.38° ~ 28.56°(H), 88° ~ 16.4°(V), 121.4° ~ 33.7°(O)
S/N Ratio
>52dB
Back Light Compensation
BLC / HLC / WDR(120dB)
Frame Rate
Main Stream: 5MP (25921944), Max 20fps; 5MP (2592x1944), Max 25fps (WDR OFF); 4MP (2560x1440), Max 30fps; 3MP (2048x1536), Max 30fps; 2MP (1920x1080), Max 30fps; Sub Stream: 2MP (19201080), Max 30fps; Third Stream: D1 (720x765), Max 30fps
Video Streaming
Triple
Resolution
2592 x 1944
Motion Detection
Up to 4 areas
Privacy Mask
Up to 8 areas
ICR
IR-cut filter with auto switch (ICR)
ROI
Up to 8 areas
Audio Input
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Audio Output
Output: impedance 600 Ω; amplitude 2 V [p-p]
OSD
Up to 8 OSDs
Audio
Two way Supported
Alarm IN
1 Ch.
Alarm Out
1 Ch.
Protocol
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, ONVIF (Profile S, Profile G, Profile T), API
Ethernet
10M/100M Base-TX Ethernet
Smart Phone
Android, Ios
IR Range
Array Range of 50 Mtr., Smart IR
Micro SD
Micro SD, up to 256GB
Operating Temperature
-35°C ~ 60°C (-31°F ~ 140°F)
Humidity
≤95% RH (non-condensing)
Power Source
12 V DC±25%, PoE (IEEE802.3 af)
Power Consumption
Max.10 W
Weatherproof Standard
IP67
Dimension
253.4mm x 86.4mm x 78.7mm (10.0” × 3.4” × 3.1”)
Weight
1.0kg
