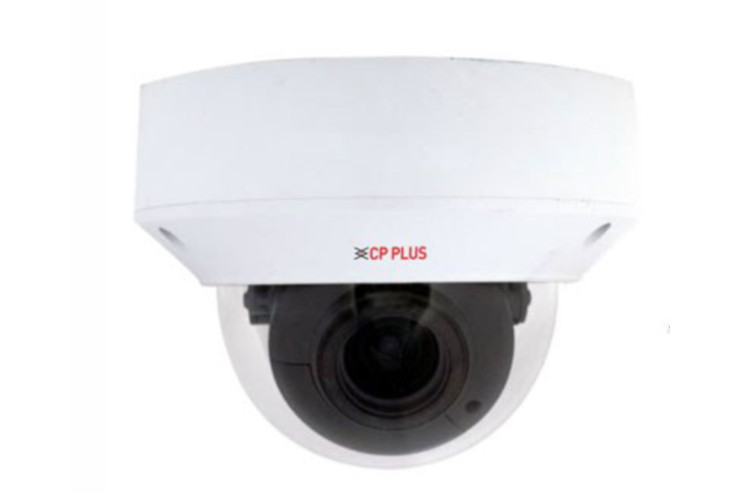

CP-VNC-V21ZR3-VMDS

2 MP Full HD WDR Array Vandal Dome Camera - 30 Mtr.

Category: Network Camera

Sub Category: 2 MP

SKU: 32115

Image Sensor	1/2.8” 2MP Progressive scan CMOS (0.9071 centimeters)
Minimum Illumination	Colour: 0.0005 Lux (F1.2, AGC ON) 0Lux with IR
BodyType	Vandal Dome
Shutter Speed	Auto/Manual, 1~1/100000 s
White Balance	Auto/Manual
Lens	2.7~13.5mm Motorized Lens
Gain Control (AGC)	Auto/Manual
Video Compression	Ultra 265,H.265,H.264,MJPEG
Angle of View	121.36° ~33.51° (H), 60.2° ~ 13.2° (V), 157.8° ~ 41.2° (O)
S/N Ratio	>52dB
Frame Rate	Main Stream: 2MP (1920×1080): Max. 30 fps; Sub Stream: 2MP (1920×1080): Max. 30 fps; Third Stream: D1 (720×576): Max. 30 fps
Video Streaming	Triple
Video Output	1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
Resolution	1920 x 1080
Motion Detection	Up to 4 areas
Privacy Mask	Up to 8 areas
ICR	IR-cut filter with auto switch (ICR)
ROI	Up to 8 areas
OSD	Up to 8 OSDs
Audio Input	impedance 35 kΩ; amplitude 2 V [p-p]
Audio Output	impedance 600 Ω; amplitude 2 V [p-p]
Audio	Two-way audio Supported
Alarm IN	1 channel
Alarm Out	1 channel
WDR	WDR (120dB)
Protocol	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, ONVIF(Profile S, Profile G), API
Ethernet	1 RJ45 10M/100M Base-TX Ethernet
IR Range	IR Range of 30 Mtr. , Smart IR
Micro SD	Micro SD, up to 256GB
Operating Temperature	-40°C ~ +60°C (-40°F ~ 140°F)
Humidity	10%~90% RH(non-condensing)
Power Source	DC12V±25%, PoE (IEEE802.3 af)
Power Consumption	Max.8.7w
Weatherproof Standard	IP67 & IK10
Dimension	Φ148 x 111.3 mm (Ø5.8” x 4.4”)
Weight	0.92 kg
