CP-VNC-V51R3-VMD
Home
Products
CP-VNC-V51R3-VMD

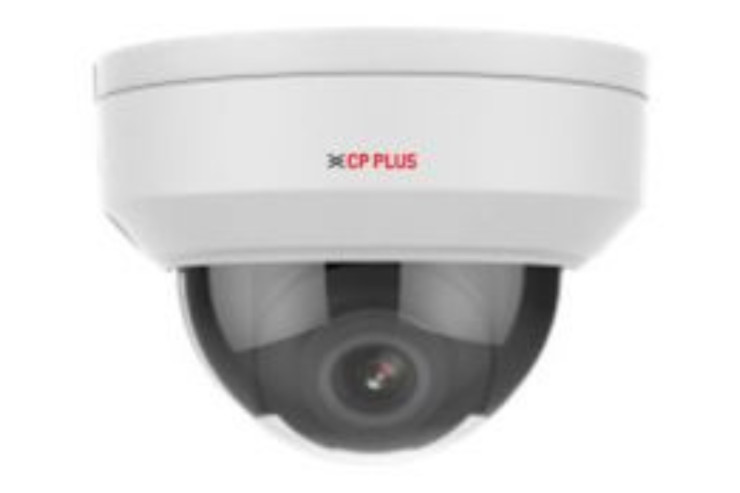

5 MP Full HD WDR Array Vandal Dome Camera - 30Mtr.
Add To Cart
Category:
Network Camera
Sub Category:
5 MP
SKU:
65613
Share:
Description
Additional Information
Ratings
1/2.7” 5MP PS CMOS Image Sensor (0.9407 centimeters)
5MP(2592 x 1944): Max. 25
Ultra 265,H.265, H.264, MJPEG Triple-stream Encoding
WDR(120dB), Day/Night(ICR), 2D/3D-DNR, Corridor mode, ROI,Digital defog, AWB, AGC, BLC, HLC
2.8mm lens (3.6mm optional)
Array Range of 30 Mtrs, Smart IR, Micro SD Card, IP67, IK10, PoE
Mobile Software: Android, iOS
CMS Software: IVMS
*Only for UAE
Image Sensor
1/2.7” 5MP Progressive scan CMOS (0.9407 centimeters)
Minimum Illumination
Colour: 0.005Lux (F1.6, AGC ON) 0 Lux with IR
BodyType
Vandal Dome
Shutter Speed
Auto/Manual, 1~1/100000 s
White Balance
Auto/Manual
Lens
2.8mm (3.6mm Optional)
Gain Control (AGC)
Auto/Manual
Video Compression
Ultra 265,H.265, H.264, MJPEG
Angle of View
8mm- 105.75°(H), 69.5° (V), 136.8° (O) ; 3.6mm- 79.7° (H), 51.8° (V), 98.1° (O)
Back Light Compensation
BLC / HLC / WDR(120dB)
Frame Rate
Main Stream: 5MP (2592x1944), Max 20fps; 5MP (2592x1944), Max 25fps (WDR OFF); 4MP (2560x1440), Max 30fps; 3MP (2048x1536), Max 30fps; 2MP (19201080), Max 30fps; Sub Stream: 2MP (1920x1080), Max 30fps; Third Stream: D1 (720x576), Max 30fps
Video Streaming
Triple
Resolution
2592 x 1944
Motion Detection
Up to 4 areas
Privacy Mask
Up to 8 areas
ICR
IR-cut filter with auto switch (ICR)
ROI
Up to 8 areas
OSD
Up to 8 OSDs
Audio Input
2 Ch. : impedance 35 kΩ; amplitude 2 V [p-p]
Audio Output
1 Ch. : impedance 600 Ω; amplitude 2 V [p-p]
Audio
Two way Supported
Alarm IN
1 Ch.
Alarm Out
1 Ch.
Protocol
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, ONVIF(Profile S), API
Ethernet
10M/100M Base-TX Ethernet
IR Range
Array Range of 30 Mtr., Smart IR
Micro SD
Micro SD, up to 256GB
Operating Temperature
-35°C ~ +60°C (-31°F ~ 140°F)
Humidity
≤95% RH (non-condensing)
Power Source
12 V DC±25%, PoE (IEEE802.3 af)
Power Consumption
Max 5.5W
Weatherproof Standard
IP67 & IK10
Dimension
Φ108.5mm x 81mm (Ø4.28” x 3.2”)
Weight
0.45 kg
