Networking standard: IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX,
IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt
Power over Ethernet
Support 6KV lightning protection, 8KV surge protection
PoE Power Budget : 300W
Support bt 60W High Power (PoE Port 15~16)
AI Watchdog Function

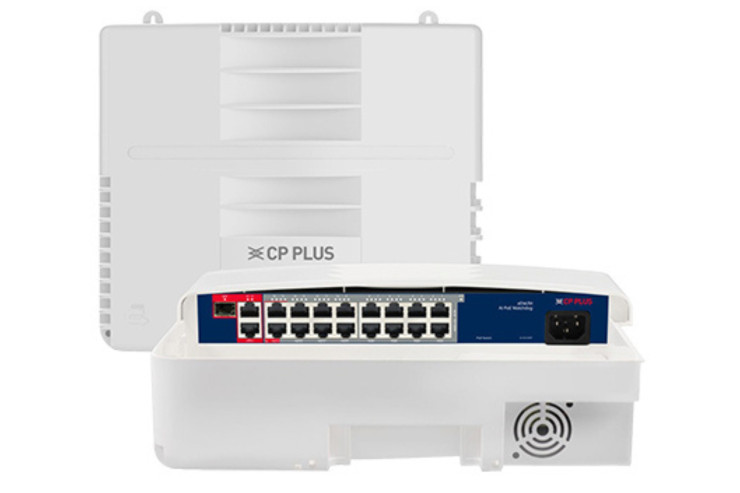

Water Resistant AI PoE Switch
Support IP65 Rating
Network Port
PoE (1~14):10/100Mbps PoE ports (RJ45) PoE (15):10/100Mbps PoE port, Support bt 60W High Power PoE (16):10/100/1000Mbps PoE port (RJ45), Support bt 60W High Power LAN(1~2):10/100/1000Mbps uplink ports (RJ45) SFP: 10/100/1000Mbps SFP port
Transmission Rate
2000Mbps Full Duplex; 10 or 100 or 1000 Mbps Half Duplex
Network Standard
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power over Ethernet
Transmission Distance
100Mbps /10Mbps,Auto-Adaption 250m
MAC Address List
8K
Bandwidth
12.8Gbps
Network Latency
(10 to 100Mbps): ≤16μs (use the 64byte package size)
Frame Filter & Transmission Rate
14800pps the most for 10Mbps port, 148800pps the most for 100Mbps port;1488000pps the most for 1000Mbps port
