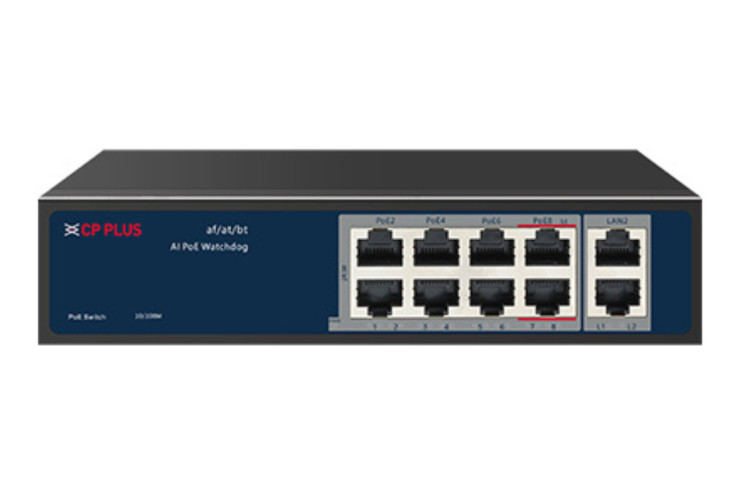

CP-ANW-HPU8H2-N12

8 Port PoE + 2 Uplink Port PoE Switch

Category: Switches

Sub Category: PoE

SKU: 32115

Networking standard: IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet
Support 6KV lightning protection, 8KV surge protection.
PoE Power Budget : 120W.
Support bt 60W High Power (PoE Port 7~8).

Network Port	PoE (1~6): 10/100Mbps PoE ports (RJ45), PoE (7~8): 10/100Mbps PoE ports (RJ45),Support bt 60W High Power, LAN: 10/100Mbps uplink ports (RJ45)
Network Standard	IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet
Transmission Rate	200Mbps Full Duplex; 10 or 100Mbps Half Duplex
Transmission Distance	1~2 ports 250m 10Mbps / 3~8 ports 130m 100Mbps
MAC Address List	2K
Bandwidth	2.0 Gbps
Network Latency	(10 to 100Mbps): ≤16μs (use the 64byte package size)
Frame Filter & Transmission Rate	14800pps the most for 10Mbps port, 148800pps the most for 100Mbps port
Power Budget	120W
Power Input	AC 90~240V, Total: ≤120W
Power Output	PoE 1~6 Port: 1/2(+52V), 3/6 (GND)≤30W, PoE 7~8 Port: 1245(+53V), 3678 (GND) compatible 1/2 (+52V), 3/6 (GND)≤60W
Watchdog	Port 1~8
Lightning Protection	6KV, Per: IEC61000-4-5
ESD Protection	8KV, Per: IEC61000-4-2
Operating Temperature	-30°C ~60°C
Operating Humidity	10%~90% (Non-condensing)
Storage Temperature	-40°C ~70°C
Storage Humidity	5%~90% (Non-condensing)
Dimension	187mm(L) x 139mm(W) x 43mm(H)
Weight	1Kg
Package Content	AC Power Cable, User Manual
