CP-UVR-3204K4-H
Home
Products
CP-UVR-3204K4-H

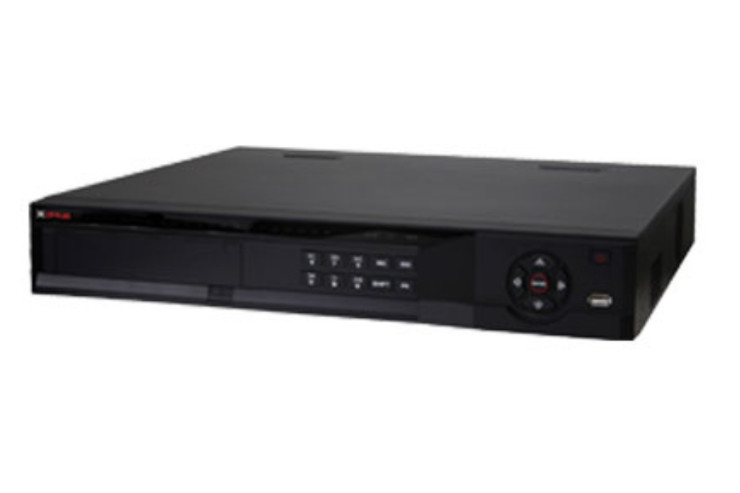

32 Ch. 1080P H.265 Cosmic HD DVR
Add To Cart
Category:
Digital Video Recorder (DVR)
Sub Category:
32 Ch.
SKU:
15666
Share:
Description
Additional Information
Ratings
Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
Support upto 8MP IP Camera
Max 128Mbps Incoming Bandwidth
Instastream/ H.265 dual-stream Video Compression
2 HDMI / 1 VGA Simultaneous Video Output
Support 4 SATA HDD up to 10TB Each, 3 USB Ports
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS, KVMS Pro
Processor
Embedded processor
Operating System
Embedded LINUX
IP Camera Input
32 Ch. : each channel up to 8MP
Two-way Talk
1 Mic In, 1 Mic Out, BNC
User Interface
GUI
Video Output
2 HDMI ,1 VGA, 1 TV
Video Resolution
5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Video Compression
Instastream/H.265/H.264+/H.264
Video Recording
Main stream:the 1st & 2nd channel 5M-N(1~10fps),others 4M-N/1080P(1~15fps); 1080N/720P/960H/ D1/CIF (1~25/30fps),Sub stream: D1/CIF(1~15fps)
Video Display Split
HDMI 1:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720, HDMI 2 / VGA: 1920×1080, 1280×1024, 1280×7201920×1080, 1280×1024, 1280×720
Video Channel
32 channel, BNC
Video Standard
Analog: NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Audio Output
1 channel
Audio Channel
4 channel
Motion Detection
MD Zones: 396 (22 × 18)
Video Loss
Supports
Alarm Input
16 channel
Alarm Output
6 channel
Smart Phone
iPhone, iPad, Android Phone
Hard Disk
4 SATA port, up to 10TB Each
Trigger Events
Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Recording Mode
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Backup Mode
USB Device/ Network
Playback
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
Max User Account
128 users
Record Interval
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet
1 RJ-45 port (1000M)
Interface Ports
2 HDMI ,1 VGA, 1 TV, 3 USB Ports (1 USB 2.0, 2 USB 3.0), 1 RS485, 1 RS232, 1 RS422
Protocols
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search, ONVIF 16.12, CGI Conformant
Power Supply
AC100V-240V, 50/60Hz
Power Consumption
<35W(without HDD)
Working Temp
-10 ~+55°C / 10~90%RH
Dimension
440mm×417mm×76mm
Weight
5kg (without HDD)
