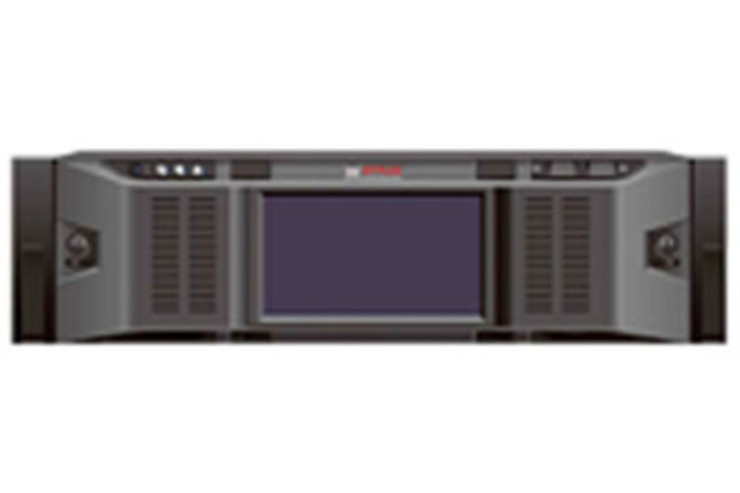

CP-UNS-7216DR

General Surveillance Management Centre

Category: Storage

Sub Category: Network Storage

SKU: 10000

High-performance stream media transfer and storage capability
Support local storage and IP-SAN storage
Support GIS map (Google, Raster Map)
Support ONVIF, GB/T28181standard protocol gateway connection
Support intelligent device connection
Front panel can displays system service status
Max support 2000 channels (Max support 500 input devices)
Support 10000 accounts management and 1000 online users
Support 700M transfer and local storage capability
Support 20 distributes server and 5-level cascade, E-map max displays 200-channel on one screen

Processor	Intel Core Processor
Operating System	Embedded LINUX
Smart Phone	iPhone, iPad, Android
Hard Disk	One system disk and 15 disks local storage (Max support 6TB HDD)
RAID	Single, Raid 0, Raid 1, Raid 5
HDD Hibernation	Main thoroughfare through the backplane
Hard Disk	15 disks
Memory	8GB DDR3
General Alarm	Support for E-mail, beep, SDK, etc. For fault alarm
Ethernet	4 x 1000Mbps ports
Interface Ports	4 USB 2.0, 1 RS232
Protocols	ISCSI, SAMBA, NFS, FTP
Power Supply	100V-240Vac, 47-63Hz, Hot swappable
Power Consumption	100W~200W(with HDD)
Working Temp	0°C~50°C ; 5%~90%(Non-Condensation)
Dimension	526mmx485mmx135mm(HxWxD)
Weight	33Kg
