CP-UVS-6487R
Home
Products
CP-UVS-6487R

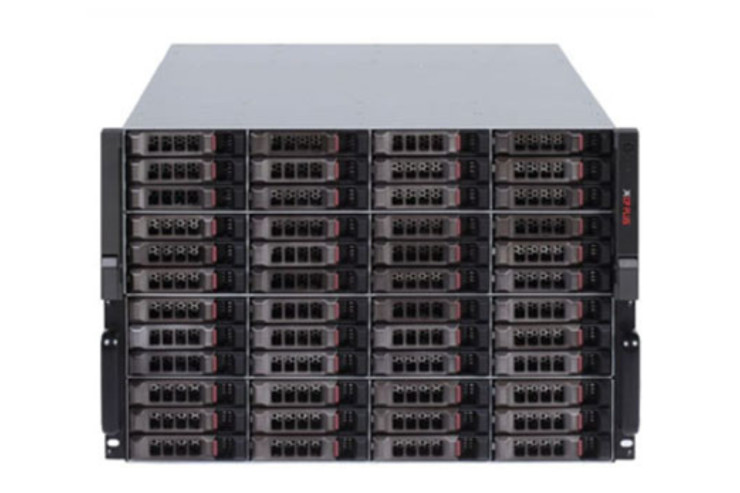

48-HDD Enterprise Video Storage
Add To Cart
Category:
Storage
Sub Category:
Video Storage
SKU:
10000
Share:
Description
Additional Information
Ratings
Max 320 IP Camera Inputs
48 HDDs, SATA, Hot-Swap
Max 640Mbps Incoming/recording Bandwidth
iSCSI and Mini SAS for Expanded Storage Space
Redundant Power
Supports RAID 0/1/3/4/5/6/10/50/60/JBOD, Hotspare
Support standard iSCSI Protocol Storage
Processor
64-bit high-performance Intel processor
Operating System
Embedded LINUX
Smart Phone
iPhone, iPad, Android
User Interface
Web
Hard Disk
48 HDDs, Up to 10TB capacity for each HDD, SATA HDD composite connection
IP Camera Input
320 Channel
RAID
Single, RAID 0/1/3/4/5/6/10/50/60/JBOD, hotspare
HDD Hibernation
Additional HDD bracket, HDD hot-swap, HDD online replacement
Memory
4GB by default (Optional Extension 128GB SSD)
Recording Mode
Manual, Schedule (Regular, Continous), Motion Detection, Alarm
Search Mode
Time/Date, Channel, Alarm, MD and Exact Search (accurate to second)
Extract Frame
Support extracting P frame function. Customizied extracting period and frame rate setup
Snapshot
Support snapshot function, create user volume to back data.
ANR
After disconnection, system can download the record file from the SD card on the network camera to maintain the full record file.
miniSAS
2 miniSAS ports, for storage extension
Expansion Interface
N+M cluster service
RAID Rebuild
Dynamically adjust RAID rebuild speed to guarantee system load balance
Backup Mode
USB Device/Network/eSATA Device
Record Interval
1 ~ 120 min (default 60 min), Pre-record 1 ~ 30 sec, Post-record 10 ~ 300 sec., 1 frame storage by period.
User Account
128 users
Interface Ports
2 USB 3.0, 1 eSATA , 1RS232
Ethernet
1 management RJ-45 ports (10/100/1000Mbps) , 4 data RJ-45 ports (10/100/1000Mbps) 4 data RJ-45 ports (10/100/1000Mbps)
Protocols
HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTP, RTCP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, iSCSI, SMB, NFS, FTP, Alarm Server, IP Search, ONVIF 2.4, CGI Conformant
Chassis
1.2mm extra-thickness hot-dip galvanized steel. High accuracy aluminum alloy slider. Self-developed patent removable HDD bracket.
Fan
DC12V, 1.5A, Diameter 80mm, MTBF > 100,100 hours, Hot-swap
Working Temp
0°C ~ +40°C (+32°F ~ +104°F), 10 % ~ 80% RH
Power Supply
AC100V ~ 240V, 47 ~ 63 Hz，2 + 1 Redundant power, Hot-swap
Power Consumption
175W ~ 950W (With HDD)
Dimension
482.6mm x 558.5mm x 347.8mm
Weight
50kg (without HDD)
