CP-USC-DA24L2-V5

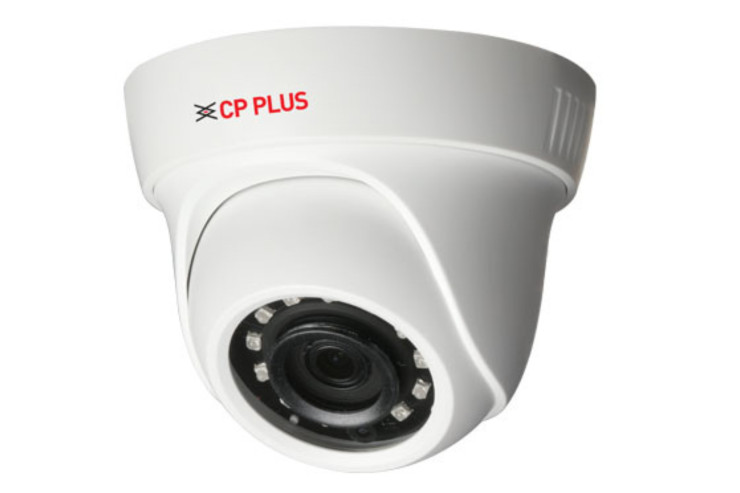

2.4MP Full HD IR Dome Camera - 20Mtr.

Category: Analog HD Camera

Sub Category: 2.4 MP

SKU: 32115

Image Sensor	1/2.7” 2.4MP PS CMOS Image Sensor(0.9407cm)
Minimum Illumination	0.02Lux/F1.9, 30IRE, 0Lux IR on
Effective Pixels	2.4MP
BodyType	Dome
Shutter Speed	PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
White Balance	Auto / Manual
Lens	3.6mm (2.8mm Optional)
Gain Control (AGC)	Auto / Manual
Angle of View	2.8 mm: 119° x 101° x 54° (diagonal x horizontal x vertical) 3.6 mm: 100° x 84° x 45° (diagonal x horizontal x vertical)
S/N Ratio	>65dB
Back Light Comp.	BLC / HLC / DWDR
Video Streaming	CVI: 2.4MP@25/30fps; 720P@25/30fps; 720P@50/60fps AHD: 2.4MP@25/30fps; 720P@25/30fps TVI: 2.4MP25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
ICR	Auto(ICR)/Color/B/W
IR Range	IR Range of 20 Mtr.
Operating Temperature	-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Power Source	12V DC ±30%
Power Consumption	Max 3.1W (12V DC, IR on)
Weatherproof Standard	IP50
Dimension	φ85.4 mm × 70.2 mm
Weight	0.13Kg
