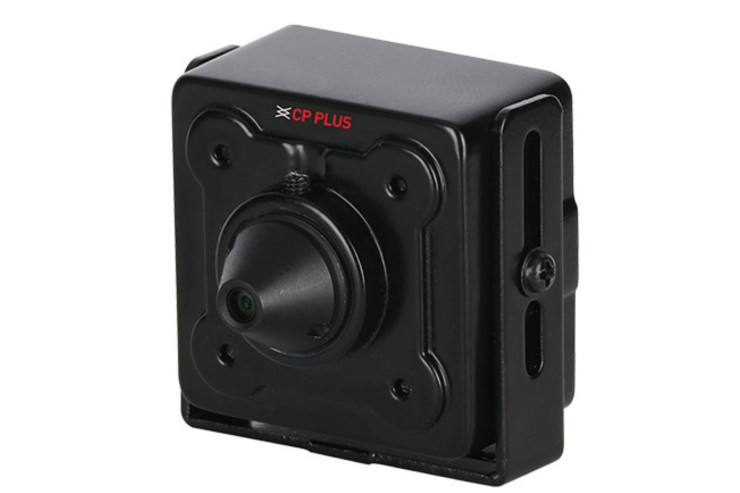

CP-USC-PC24-VDS

2.4MP Pin Hole Camera

Category: Analog HD Camera

Sub Category: 2.4 MP

SKU: 32115

Image Sensor	1/2.8” 2.4MP PS CMOS Image Sensor (0.9071 centimeters)
Minimum Illumination	Color: 0.004LuxLux/F2.4 Black & White: 0.0004LuxLux/F2.4
Shutter Speed	PAL: 1/3s–1/100000s NTSC: 1/4s–1/100000s
White Balance	Auto / Manual
Gain Control (AGC)	Auto / Manual
ICR	Auto switch by ICR
Lens	2.8mm
Max Aperture	F2.4
Lens Type	Fixed-focal
S/N Ratio	>65dB
DORI Distance	D: 42.1 m (138.1ft); O: 16.8 m (55.1 ft); R: 8.4 m (27.6 ft); I: 4.2 m (13.8 ft)
Back Light Compensation	BLC/HLC/WDR(120dB)
Video Streaming	2.4MP; 720P (1280 × 720); 960H (704 × 576/704 × 480)
Angle of View	117.9° × 103° × 59° (diagonal x horizontal x vertical)
Audio Channel	One channel Input, RCA sound pick-up port
Casing	Metal throughout the whole casing
Operating Temperature	-30°C to +60°C (-22°F to 140°F); <95% (non-condensation)
Power Source	12V DC ±30%
Power Consumption	Max 2.11W
Dimension	43.5 mm × 36.2 mm × 29.5 mm (1.71)
Weight	0.04Kg
