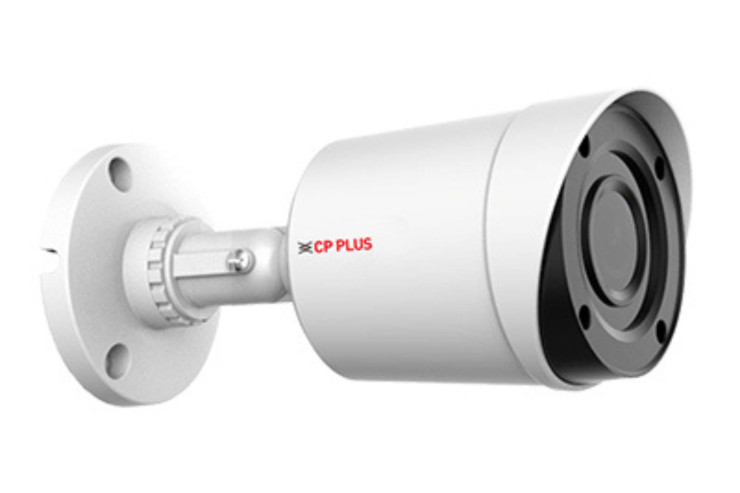

CP-USC-TA24L2-V5

2.4MP IR Bullet Camera - 20Mtr.

Category: Analog HD Camera

Sub Category: 2.4 MP

SKU: 3116

Image Sensor	1/2.7” 2.4MP PS CMOS Image Sensor(0.9407cm)
Minimum Illumination	0.02Lux/F1.9, 30IRE, 0Lux IR on
Shutter Speed	PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
White Balance	Auto / Manual
Gain Control (AGC)	Auto / Manual
ICR	Auto (ICR)/Manual
Lens	3.6 mm Fixed Lens (2.8 mm, 6 mm Optional)
Max Aperture	F1.9
Auto Iris	Fixed
Lens Type	Fixed
S/N Ratio	>65dB
DORI Distance	2.8 mm: 38.6 m(Detect) 15.4m(Observe) 7.7m(Recognize) 3.9m(Identify) 3.6 mm: 49.7m(Detect) 19.9m(Observe) 9.9m(Recognize) 5m(Identify) 6 mm: 82.8m(Detect) 31.1m(Observe) 16.6m(Recognize) 8.3m(Identify)
Back Light Compensation	BLC / HLC / DWDR
Video Streaming	CVI: 2.4MP@25/30fps; 720P@25/30fps; 720P@50/60fps AHD: 2.4MP@25/30fps; 720P@25/30fps TVI: 2.4MP@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H
Angle of View	2.8 mm: 119° x 101° x 54° (diagonal x horizontal x vertical) 3.6 mm: 100° x 84° x 45° (diagonal x horizontal x vertical) 6 mm: 60° x 56° x 30° (diagonal x horizontal x vertical)
IR Range	IR Range of 20 Mtr.
Casing	Plastic throughout the whole casing
Operating Temperature	-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Power Source	12V DC ±30%
Power Consumption	Max 3.1W (12V DC, IR on)
Weatherproof Standard	IP67
Dimension	154.3 mm × 69.8 mm × 69.8 mm
Weight	0.15Kg
