CP-USC-DC10PL2-V3

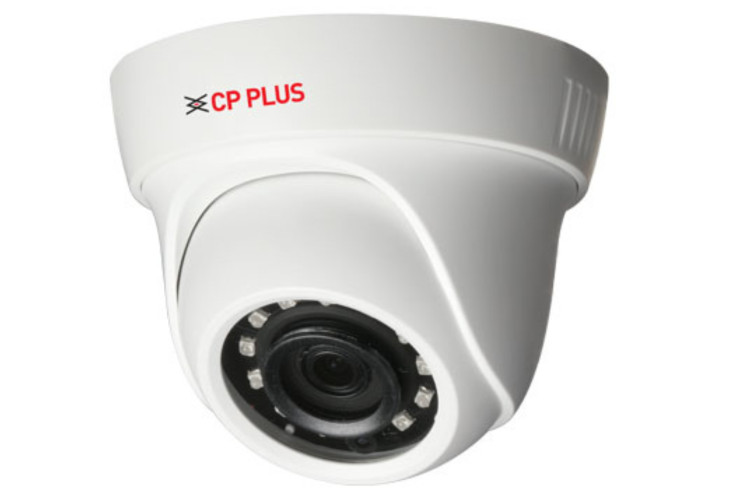

1MP Full HD IR Dome Camera - 20Mtr.

Category: Analog HD Camera

Sub Category: Analog 1MP

SKU: 35469

Image Sensor	1/2.7” 1MP PS CMOS Image Sensor (6.858 cm)
Minimum Illumination	0.04Lux/F2.4, 30IRE, 0Lux IR on
Shutter Speed	PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
White Balance	Auto / Manual
Gain Control (AGC)	Auto / Manual
ICR	Auto (ICR)/Manual
Lens	3.6mm (2.8mm optional)
Max Aperture	F2.4
Lens Type	Fixed lens/ Fixed Iris
Close Focus Distance	800mm (31.50'')
Mount Type	Board-in
S/N Ratio	More than 65dB
DORI Distance	3.6mm- 51m (Detect) 20m (Observe) 10m (Recognize) 5m (Identify) 2.8mm- 51m (Detect) 20m (Observe) 10m (Recognize) 5m (Identify)
Back Light Compensation	BLC/ DWDR
Video Streaming	1MP@25/30fps
Video Output	1-channel BNC high definition video output/ CVBS video output (Can switch)
Angle of View	H: 93°(57.6°) V: 48°(32°)
IR	IR Range of 20 Mtr., Smart IR
OSD	Multi-language
Casing	Plastic
Operating Temperature	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Power Source	12V DC ±30%
Power Consumption	Max 2.3W (12V DC, IR on)
Dimension	85mm×85mm×69mm
Weight	0.09Kg.
