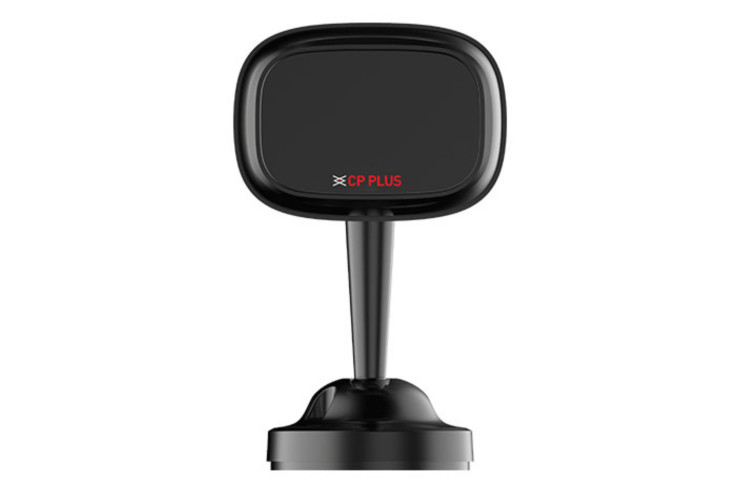

CP-UA-DSM1 - Supreme Security System

Driver Monitoring Camera

Category: Mobile Surveillance

Sub Category: Mobile Camera

SKU: 14235

1/4" 1MP CMOS image sensor(0.635cm)
Max. Outputs 50 Hz(1280 × 720)@25fps, Max. Outputs 60 Hz (1280 × 720)@30fps
IR Range of 3m.
2D/3D NR, BLC, HLC, AGC, IP54
9 V–16 VDC

Image Sensor	1MP CMOS image sensor(0.635cm)
Effective Pixels	1280 (H) × 720 (V)
Minimum Illumination	0.1 lux
Shutter Speed	NTSC: 1/30 s–1/10,000 s PAL: 1/25 s–1/10,000 s
Close Focus Distance	4 mm
Iris	Fixed
Max Aperture	F1.4
Gain Control (AGC)	Auto
Back Light Compensation	BLC,HLC
Angle of View	H: 61.8°, V: 37.5°
Resolution	1MP(1280 × 720)
Video Streaming	50 Hz: 1280 × 720@25 fps 60 Hz: 1280 × 720@30 fps
Noise Reduction	2D/3D NR
IR Control	Strobe
IR	IR Range of 3Mtr.
No of IR LEDs	1 IR
Operating Temperature	–30°C to +70°C (–22°F to +158°F)
Humidity	< 90% (RH) (non-condensing)
Weatherproof Standard	IP54
Power Source	9 V–16 V DC
Power Consumption	< 2.5 W
Dimension	107.3 mm × 64.0 mm × 27.7 mm
Casing	Cover: Plastic, Rear: Metal
Weight	191.6 g
