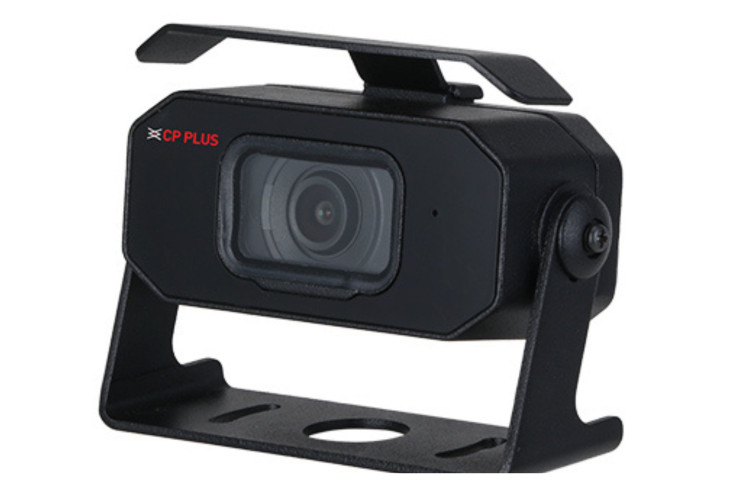

CP-USC-CC24L2C

2.4MP Mobile Cube Camera

Category: Mobile Surveillance

Sub Category: Mobile Camera

SKU: 34652

Image Sensor	1/2.7" 2.4MP Progressive CMOS Sensor(0.9407cm)
Minimum Illumination	0.02 Lux/F2.0, 30IRE, 0 Lux IR on
S/N Ratio	More than 65dB
Shutter Speed	PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s
Gain Control (AGC)	AGC
White Balance	Auto / Manual
Back Light Compensation	BLC / HLC / DWDR
Lens	2.8mm (2.1mm optional)
Iris	Fixed iris
Lens Type	Fixed-focal
Max Aperture	2.8mm: F2.0 2.1mm: F2.0
Angle of View	2.8mm: H: 106°; V: 55°; D: 126°, 2.1mm: H: 133°; V: 77°; D: 153°
ICR	Auto switch (ICR)
DORI Distance	2.8mm : 38.6m (Detect) 15.4m (Observe) 7.7m (Recognize) 3.9m (Identify) 2.1mm : 31.3m (Detect) 12.5m (Observe) 6.3m (Recognize) 3.1m (Identify)
Close Focus Distance	2.8mm: 0.5m (1.64 ft), 2.1mm: 0.3m (0.98 ft)
Video Streaming	CVI: 2.4MP@25/30fps; 720p@25/30fps; 720p@50/60fps, AHD: 2.4MP@25/30fps; 720p@25/30fps, TVI: 2.4MP@25/30fps; 720p@25/30fps; 720p@50/60fps, CVBS: 960H
Audio	Built-in Mic
IR	IR Range of 20 Mtr., Smart IR
Weatherproof Standard	IP67, Shock-Proof
Casing	Metal
Operating Temperature	-40°C to +60°C (–40°F to 140°F)
Humidity	<95% (non-condensation)
Power Source	12V DC ±30%
Power Consumption	Max 2.3W (12V DC, IR on)
Dimension	107.3mm × 74.9mm × 54.5mm
Weight	0.33kg
