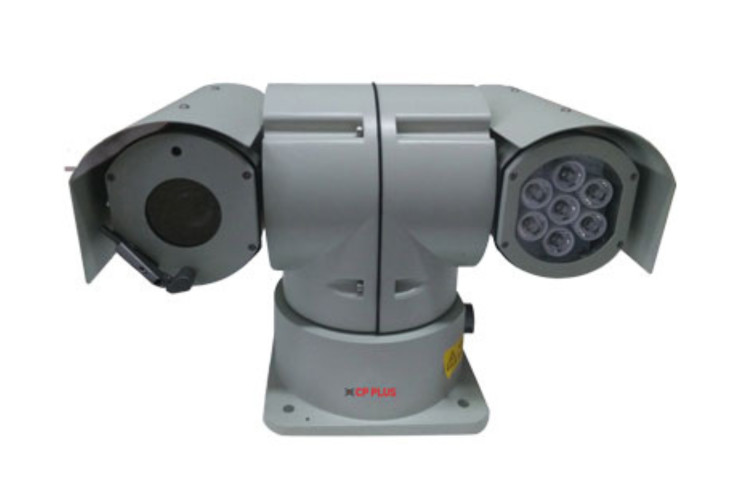

CP-UNP-M3020L15-V2

2MP Full HD Network Mobile Positioning System

Category: Mobile Surveillance

Sub Category: Mobile Camera

SKU: 34652

Image Sensor	1/2.8" CMOS Image Sensor (0.9071 centimeters)
Effective Pixels	1920(H) x 1080(V), 2 Megapixels
White Balance	Auto, ATW, Indoor, Outdoor, Manual
Focal Length	4.5mm ~ 135mm
AGC Control	Auto / Manual
Optical Zoom	30x
Focus Control	Auto / Manual
Video Compression	H.264 / MJPEG
Angle of View	H: 67.8°~2.77°
S/N Ratio	More than 55dB
Frame Rate	Main Stream: 1080P/720P(1~25/30fps), Sub Stream: D1/CIF(1~25/30fps)
Digital Zoom	16x
Pan Travel	360° endless, 0.1° ~ 80°/sec
Back Light Compensation	BLC / HLC / DWDR
Tilt Travel	-90° ~ 90°, 0.1° ~60°/sec
Presets	255
Protocols	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, ONVIF Profile S
Preset Speed	Pan: 80° /s; Tilt: 60° /s
Day/Night: IR Cut Filter	Auto(ICR) / Color / B/W
Smart Phone	iPhone, iPad, Android Phone
Networking	RJ-45 (10/100Base-T)
Operating Temperature	-30ºC ~ 65ºC / Less than 95% RH
Power Source	DC12V (10.8V~18V)
Power Consumption	<60W
Weatherproof Standard	IP66, All metal aluminium alloy, 6000V anti-lighting surge
Dimension	375(mm)×248(mm)×210(mm)
Weight	7.5Kg
