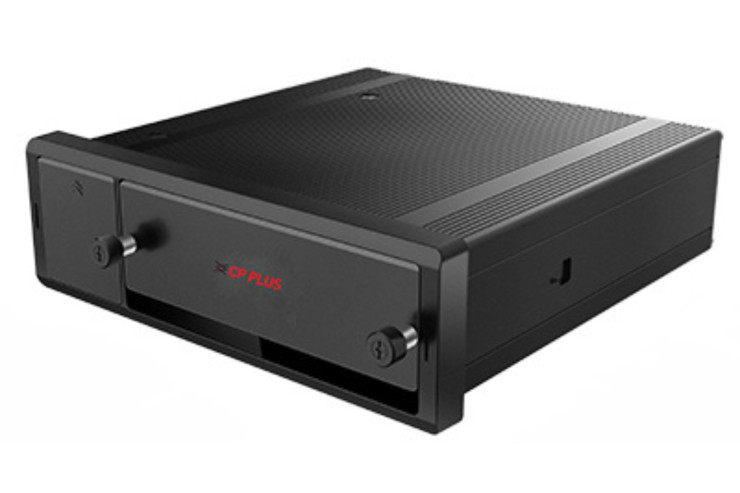

CP-UNR-404T1-AI

4 Ch. PoE H.265 AI Mobile Network Video Recorder

Category: Mobile Surveillance

Sub Category: Mobile Network Video Recorder(MNVR)

SKU: 10000

Supports 4 Ch. 2MP PoE IP cameras input
Support Instastream/ H.265 video compression
Aviation connectors/ RJ45(Optional)
Support 1 HDD and 1 SD card, 3 USB Ports (2.0)
Support GPS, Wi-Fi and 3G/4G
VGA/TV simultaneous video output
Mobile Software: EMSS Pro, iCMOB/gCMOB (Live view and Playback)
CMS Software: EMSS Pro, KVMS Pro (Live view and Playback)

Processor	High-performance industrial embedded micro-controller
IP Camera Input	4 PoE Ethernet Ports, all channels 2MP/4MP Total output power of PoE: 36 W Max. output power of a single port: 25.4 W
Two-way Talk	Supported
User Interface	GUI
Video Output	AV OUT x 1, VGA x 1 , HDMI x 1
Video Resolution	800 × 600, 1280×1024
Video Compression	H.265, H.264
Encode Strategy	Instastream
Video Display Split	1/4
Audio Compression	G.711A/G.711U/PCM
Alarm Input	8 channels for alarm input, 1 channel for pulse speed measuring
Audio Input	4 (with Built-in Mic camera)
Encoding Capacity	1080P/720P/960H/D1/CIF
Alarm Output	1 channel of controllable 12V alarm output, digital quantity
Audio Output	1 aviation port for audio output
Image Quality Adjustment	Image quality adjustable across six levels
Hard Disk	1, 2.5-inch HDDs (SATA) up to 2TB
Dual-Stream	Supported (up to D1 encoding for sub stream)
Memory	1 SD card, Up to 256GB
Recording Mode	Auto, Manual, motion detection, schedule, alarm Record alarm > alarm > motion detection > schedule
OSD	Channel, time, GPS position, license plate
Playback	1, 4
Backup Mode	HDD, USB flash drive and network backup
Interface Ports	Front panel: 2 × USB 2.0 Rear panel: 1 × USB 2.0 from EXTEND port, 3 Port RS232, 2 Port RS485, 1 TV Output, 1 Pulse Count, 1 CAN Port
Face Detection and Face Recognition	Face capture, face comparison
Ethernet	1 x 10M/100M RJ45
Alarm Linkage	Record, snapshot, local external alarm output, buzzer, log, screen prompt, tour
Heat Dissipation	Built-in fan cooling
General Alarm	Motion detection, video tampering and loss, local alarm, camera offline, manual alarm control, face blacklist and restricted number plate list alarm
Gyroscope	Supports event detection and alarm such as rollover, collision, rapid speedup/slowdown/turn
Abnormal Alarm	No HDD, HDD error, insufficient capacity, illegal login, ACC off, high temperature, rollover, battery low voltage, over speed, low speed, collision, tapid turn, rapid speedup, hard braking, low battery safety exception, network security exception
GPS	Support
3G/4G	Support
Wi-Fi	Supports built-in 2.4 G Wi-Fi modules
Power Supply	DC 6-36V with the built-in UPS (Enables system protection in normal power cut-off and in under voltage of vehicle battery.)
Power Consumption	10.2 W (without peripheral) Low power consumption: < 0.1W
Operating Temperature	-30 °C to +70°C (–22 °F to +158 °F)
Operating Humidity	10 ~ 90%
Dimension	1 DIN Front panel: 190 mm × 60 mm (7.5’×2.4’) Rear panel: 180 mm × 50 mm (7.1’×2.0’) Depth:190 mm (7.5’)
Net Weight	2.93Kg (with packages)
